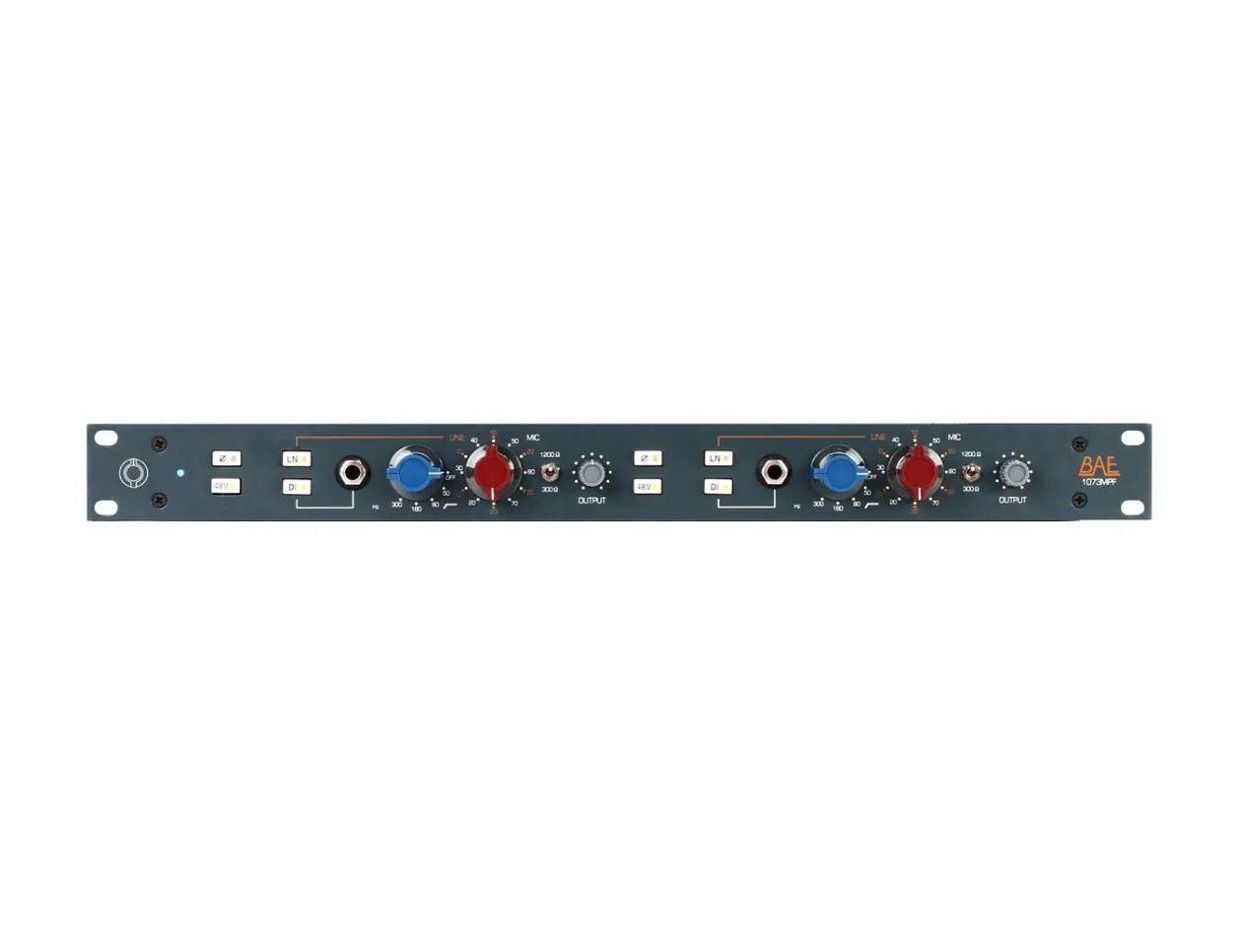

BAE1073MPF 2CH Mic PreHPF (No PSU)
This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids.
A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.
There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.
As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.
- All Class A, transformer-coupled design in a 19" 1U chassis
- Inductor based high pass filter
- Line level XLR inputs for extra versatility as a line preamp
- High impedance DI for guitar and synth
- The same Class A components as the 1073 and 1084
- Illuminated phase reverse and phantom power pushbuttons
- Input impedance selector switch between 1200 and 300 ohms
- Same modular design and hand-wiring BAE is known for
- Regulated linear power supply will run up to four channels
- Frequency Response: 10Hz to -3dB at 55kHz
- High Pass Filter: 50Hz, 80Hz, 160Hz, 300Hz
- Mic Input Impedance: ≈1200/300 ohms
- Line Input Impedance: 10k ohms
- DI Input Impedance: ≈150k ohms
- Output Impedance: 65 ohms
- Common Mode Rejection Ratio: 100dB min @ 60Hz
- Maximum Output Level: +27.4 dBu @ 600Ω
- Power Requirements: 115/230 VAC, 30W
- Gain dB: 0 to 71 dB
- Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
- Weight: 10 LBS / 4.54 KG
- Dimensions (Inches): 19W x 1.75L x 9D
