BAE1066D Mic Pre EQ (w/ PSU)

Item#
N13-BAE-1066psu
$3,185.00

Special Order Reserve yours today!

  • Free Shipping
    Free
    Shipping
  • Warranty
    Extended
    Warranty
Special order delivery times vary. Note that special orders may not be returned or cancelled. Feel free to reach out for more info!

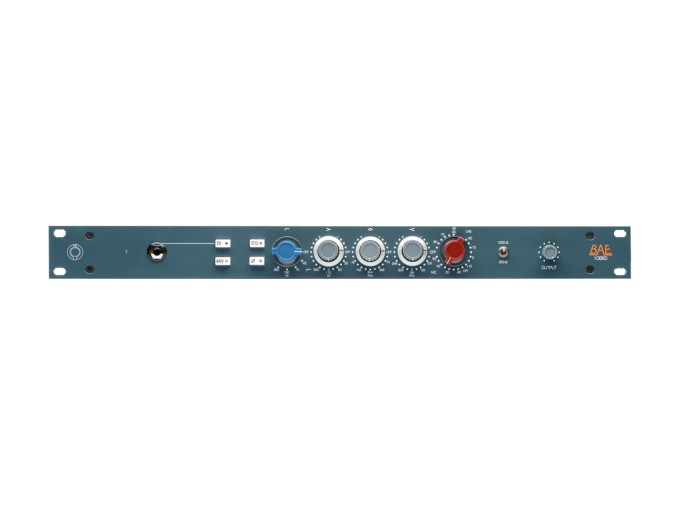

BAE 1066D

The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066D adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.

1066D Features

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equalizer on or off
  • Phase Button: 180º
  • Frequency Response: 10Hz to -3dB at 55kHz
  • High Pass Filter: 45Hz, 70Hz, 160Hz & 360Hz
  • Mic Input Impedance: ≈1200/300 ohms
  • Line Input Impedance: 10k ohms
  • DI Input Impedance: ≈150k ohms
  • Output Impedance: 65 ohms
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600Ω
  • Power Requirements: 115/230 VAC, 28W
  • Gain dB: 0 to 80 dB
  • Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
  • Weight: 10 LBS / 4.54 KG
  • Dimensions in Inches: 19W x  1.75L x 9D

3 Band Equalizer

  • HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
  • LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
