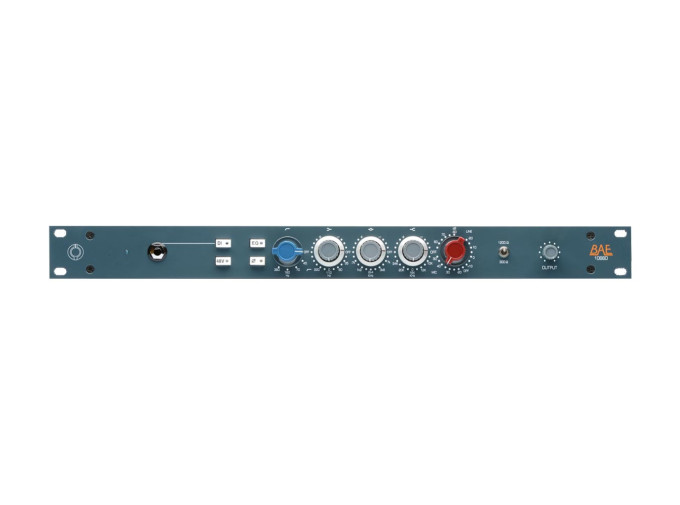

BAE1066D Mic Pre EQ (No PSU)

Item#
N13-BAE-1066nopsu
$2,985.00

Special Order Reserve yours today!

  • Free Shipping
    Free
    Shipping
  • Warranty
    Extended
    Warranty
Special order delivery times vary. Note that special orders may not be returned or cancelled. Feel free to reach out for more info!

BAE 1066D

The BAE 1066D is hand-wired with Carnhill transformers and boasts the same preamp as their 1073 model. Despite this similarity, the two units have some key differences. For example, the 1066D imparts different freqiencies, widening the overall sonic pallet. This makes it ideal for guitarists desiring a singular midrange.

1066D Features

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180º
  • Frequency Response: 10Hz to -3dB at 55kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Low Pass Filter: 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz
  • Mic Input Impedance: ≈1200/300 ohms
  • Line Input Impedance: 10k ohms
  • DI Input Impedance: ≈150k ohms
  • Output Impedance: 65 ohms
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600Ω
  • Power Requirements: 115/230 VAC, 28W
  • Gain dB: 0 to 80 dB
  • Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
  • Weight: 10 LBS / 4.54 KG
  • Dimensions in Inches: 19W x  1.75L x 9D

3 Band Equaliser

  • HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
