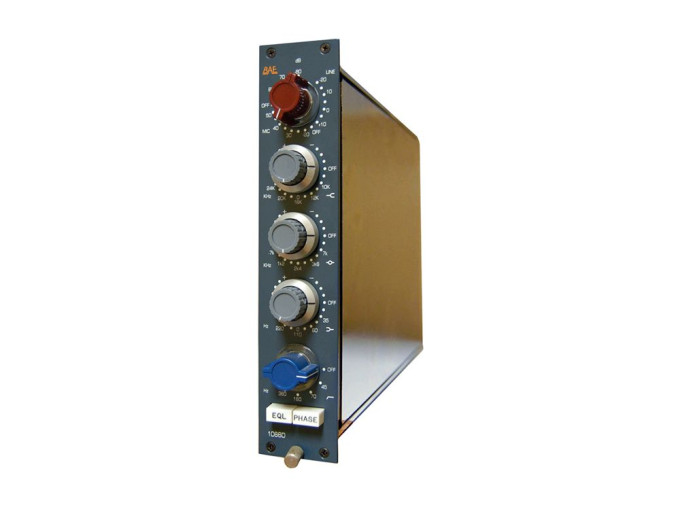

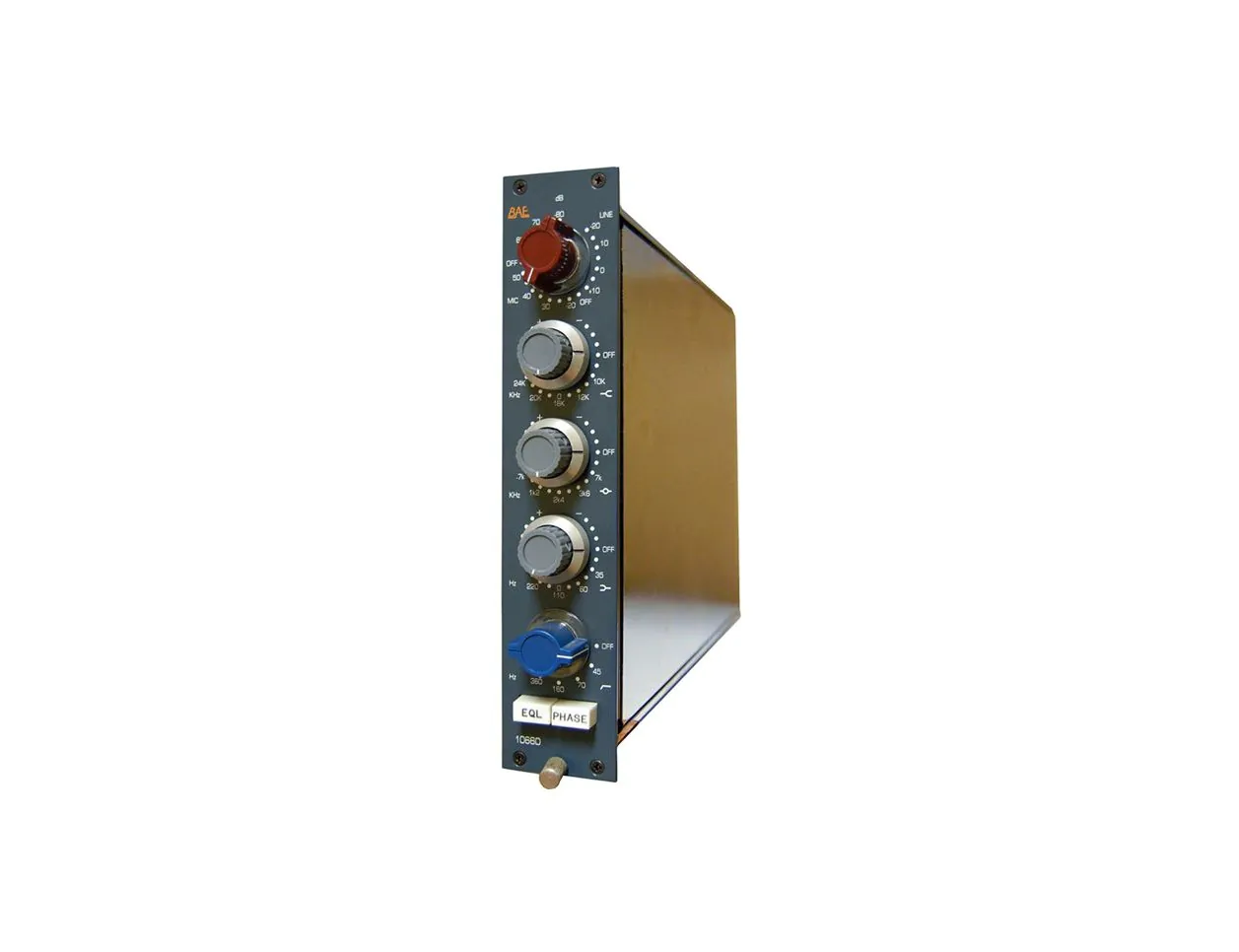

BAE 1066D
The BAE 1066D utilizes hand-wired Carnhill transformers and boasts the exact same preamp as the 1073 model. However, despite its preamp, the 1066D imparts different freqiencies to one's audio palette. Consequently, it is ideal for guitarists seeking a unique midrange, as it provides the following frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.
1066D Features
- High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.Â
- Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.Â
- Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHzÂ
- High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.Â
- EQ Button: Switches the equaliser on or off Phase Button: 180°
- 500 Series Module
Frequency Response:
- 10Hz to -3dB at 55kHz
3 Band Equaliser:
- HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
- LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
- MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
High Pass Filter:
- 45Hz, 70Hz, 160Hz & 360Hz
Mic Input Impedance
- ≈1200/300 ohms
Line Input Impedance:
- 10k ohms
DI Input Impedance:
- ≈150k ohms
Output Impedance:
- 65 ohms
Common Mode Rejection Ratio:
- 100dB min @ 60Hz Maximum Output Level +27.4 dBu @ 600Ω
Power Requirements:
- 115/230 VAC, 28W
Gain dB:
- 0 to 80 dB
Equivalent Input Noise:
- -110 dBu; Unweighted 300kHz Bandwidth
Weight:
- 6 LBS / 2.72 KG
