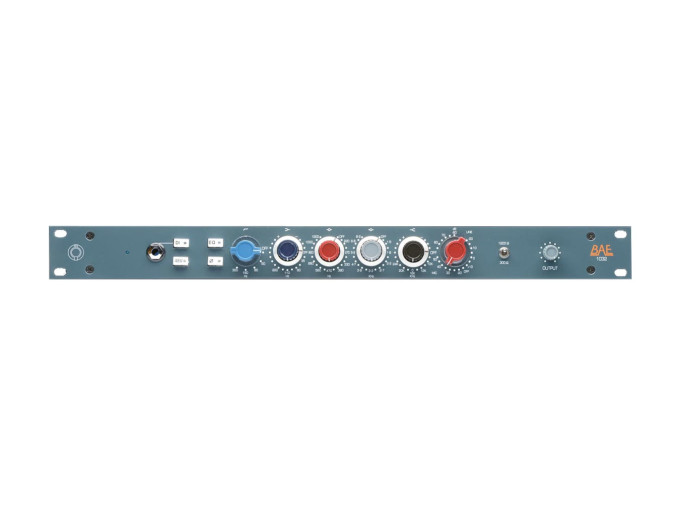

BAE 1032

The new BAE 1032 four-band mic/line preamp was inspired by the frequencies of the classic 1081. It uses the same high quality components and manufacturing techniques used in other BAE modules featuring the same Class A transformer-coupled circuits and same modular cards for long-term serviceability.

Along with the passive inductor high-pass filter, the four-band equalizer provides greater coverage. The high-mid and low-mid frequencies overlap for flexibility in correcting problem frequencies. The 1032 also provides a more comprehensive high frequency shelf up to 24kHz for extended high frequency correction without compromising the midrange.

1032 Features

  • Inspired by the 1081 EQ points using the same inductor specifications
  • Class A transformer-coupled
  • Hand-wired, all-discrete using modular cards
  • Four-band with HPF
  • Low and high-mid band overlapping frequencies
  • Extended selection for high frequency shelving
  • High quality Swiss-made Elma® rotary switches
  • 19" 1RU Rack Unit
  • Frequency response: 10Hz to -3dB at 55kHz
  • High shelf frequencies: +/-16dB at 10kHz, 12kHz, 16kHz, 20kHz and 24kHzHigh-mid frequencies: +/-16dB at 1.5kHz, 1.8kHz, 2.2kHz, 2.7kHz, 3.3kHz, 3.9kHz, 4.7kHz, 5.6kHz, 6.8kHz and 8.2kHz
  • Low-mid frequencies: +/-16dB at 220Hz, 270Hz, 330Hz, 390Hz, 470Hz, 560Hz, 680Hz, 820Hz, 1000Hz and 1200Hz
  • Low shelf frequencies: +/-16dB at 35Hz, 60Hz, 110Hz and 220Hz
  • High pass filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Mic input impedance: ≈1200/300 ohms
  • Line input impedance: 10k ohms
  • DI input impedance: ≈150k ohms
  • Output impedance: 65 ohms
  • Common mode rejection ratio: 100dB min @ 60Hz
  • Maximum output level: +27.4 dBu @ 600Ω
  • Power requirements: 115/230 VAC, 28W
  • Gain: 0 to 80 dB
  • Equivalent input noise: -110 dBu; unweighted 300kHz bandwidth
