ApogeeSymphony I/O MkII 2x6 SE - Module

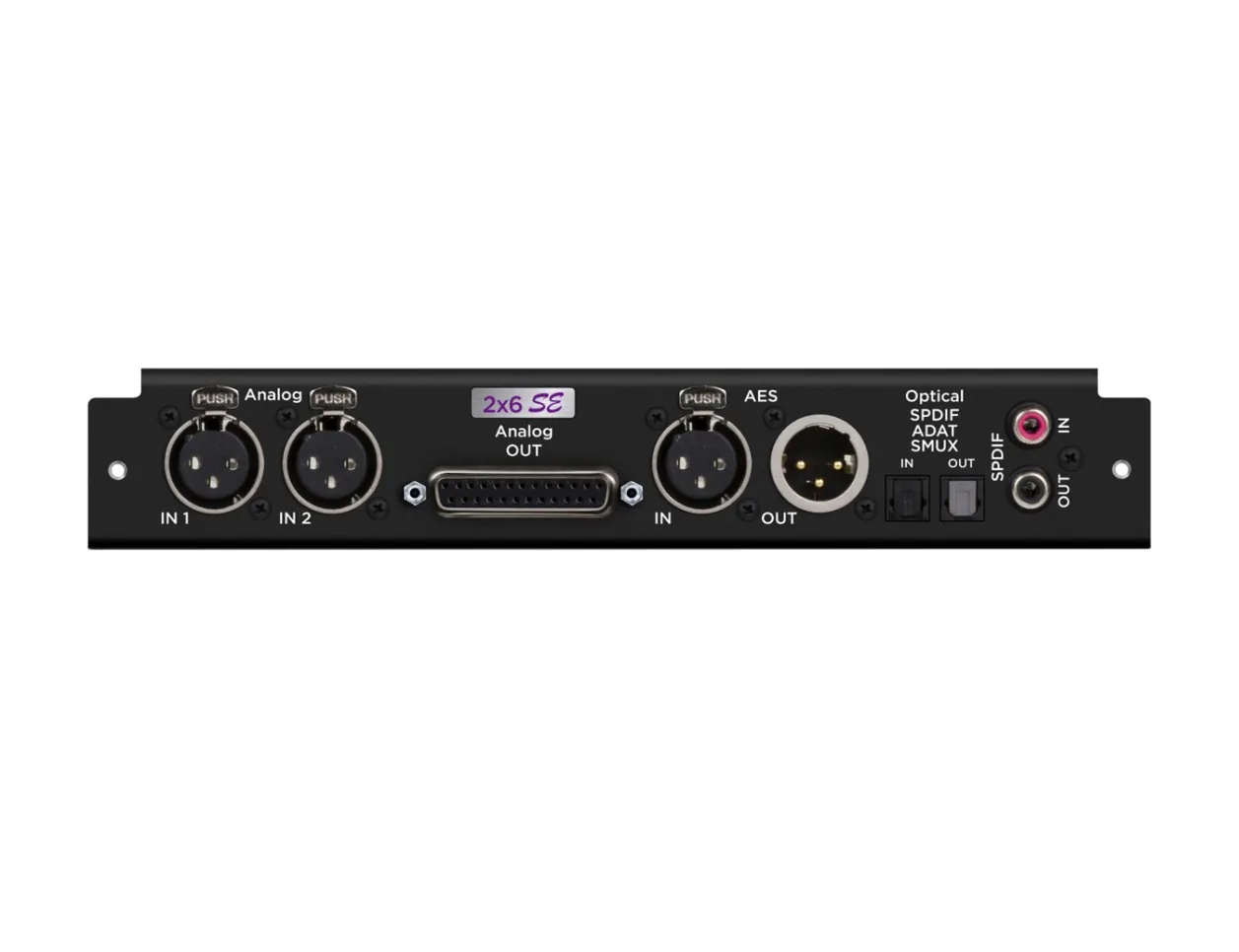

Apogee Symphony I/O MkII 2x6 SE

The Symphony I/O mkII represents the pinnacle of Apogee's technological capabilities. Its line level XLR inputs feature a 124dB dynamic range with THD+N of -118dB, while its outputs feature a 131dB dynamic range with THD+N of -118dB. If all that wasnt enough, the unit's D/A stages makes use of advanced DA technology that provides unprecedented transparency while retaining and emphasizing the dynamics of the source signal and/or processing chain.

Symphony I/O MkII 2x6 SE Features

• Highest Quality Apogee AD/DA converter
• A/D = 124dB (A) dynamic range, -116dB THD+N
• D/A = 131dB (A) dynamic range, -118dB THD+N
• 2 analog line-level inputs via XLR
• 6 analog line-level outputs via DB-25
• Fully trimmable analog input and output
• 2 channels of AES/EBU I/O via XLR
• Optical I/O - supports ADAT, SMUX, and S/PDIF
• ADAT - eight channels; 44.1kHz-48kHz on one TOSlink connector
• SMUX - four channels; 88.2kHz-96kHz on one TOSlink connector
• S/PDIF - two channels; up to 96kHz on one TOSlink connector
• S/PDIF Coaxial I/O - 2 channels; up to 192kHz via RCA connector
• May be installed in any Symphony I/O MkII Thunderbolt or PTHD chassis with an available module slot
• Not compatible with Symphony I/O MkII SoundGrid chassis
