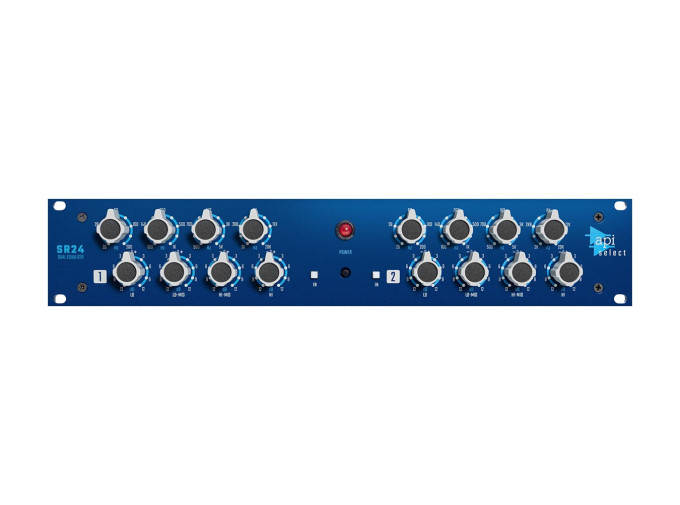

API Select SR24

API Select's SR24 is a two channel, four-band equalizer that uses a coveted circuit design from the APSI 562 EQ module, sold through API in late 70's and early 80's. Dedicated knobs for frequency and boost/cut with continuously variable controls mean the SR24 can be very precise in applying equalization. This faithfully re-engineered EQ offers 12 dB of boost/cut per band and has a +24 dB clip level giving you a ridiculous amount of headroom capable of handling the loudest sessions. Add vintage color with modern reliability offered by the API Select lineup of products.

Select SR24 Features

  • Four bands of selectable EQ based on the APSI 562 EQ module
  • Variable frequency control with dedicated gain knobs
  • 12dB of Boost/Cut per band
  • All 4 bands peak/dipping parametric configured
  • Custom transformer balanced output
  • +24 dB clip level
  • Fully balanced XLR & 1/4" In/Out
  • Inputs: 2x Balanced XLR & 1/4" Parallel Jacks
  • Outputs: 2x Transformer Balanced XLR & 1/4" Parallel Jacks
  • Input Impedance: 12k Ohms
  • Output Impedance: 300 Ohms, Transformer Balanced
  • Bandwidth: +/- 0.5db, 20Hz - 20kHz
  • THD+N @ 1kHz, +4dBu: 0.01%
  • Maximum Level: +23dBu
  • Signal-to-Noise Ratio: -100db
  • EQ Bands: All +/-12db Peak/Dip Type
  • Lo: 20Hz - 200Hz
  • Lo-Mid: 100Hz - 1kHz
  • Hi-Mid: 500Hz - 5kHz
  • Hi: 2kHz - 20kHz
  • Power Consumption: 10 Watts
  • Dimensions: 2U 19" Rack, 19 x 3.5 x 10 in
  • Weight: 13 lbs
