API527A 500-Series Compressor/Limiter

$1,135.25

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

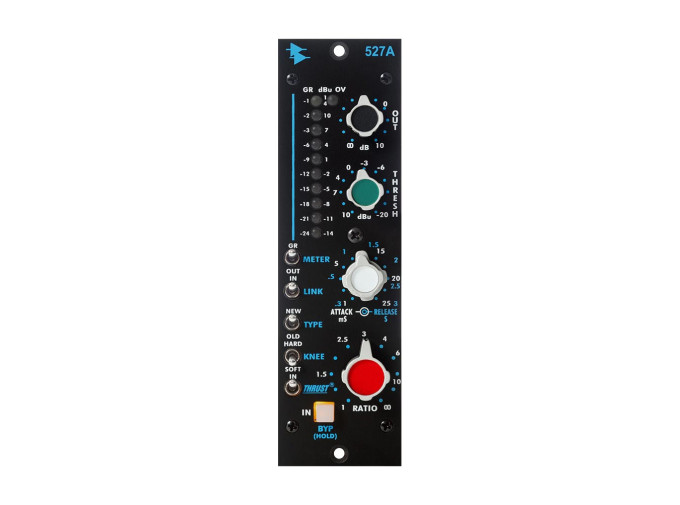

API 527A

The 527A is a 500-series VCA-based compressor and limiter that offers a stunning variety of dynamics management tools, including selectable feed-back and feed-forward compression and a hard/soft knee response. Engaging the hard knee setting produces a more direct, brickwall limiting effect; with soft knee engaged, the unit acts more like a standard compressor, but the 527A is far from your typical dynamics manager. Like the 225L, 529, 2500, and 2500+ compressors, the 527 offers API's distinctive Thrust circuit for frequency dependent side-chain behavior that adds serious punch to the low end of your tracks. Stereo operation is also possible via DC linking with a second 527A, faciliating bus compression on your mix, drum bus, or any stereo source. For a strikingly transparent, powerful, and flexible dynamics compressor in the 500-series format, look to the 527A.

527A Features

  • 500-series VCA-based dynamics management tool
  • "Type" control selects between feed-back ("old") and feed-forward ("new") compression
  • Hard knee for limiting duties, soft knee for standard compression
  • Ratio and threshold controls have minimal effect on output level to faciliate experimentation and "dialing things in"
  • All-discrete custom API op-amps lend warmth to any signal
  • Warranted for five years through API's industry-leading support policy
  • Connector: API 500 Edge Connector - VPR Alliance Compliant
  • Input Impedance: 120 K Ohms, Balanced
  • Output Impedance: 75 Ohms, Transformer coupled, Balanced
  • Maximum Input Level: +26 dBu
  • Maximum Output Level: + 30dBu
  • Output Fader Control Gain: -Infinity to +10 dBm
  • Attack Times: 1 millisecond to 25 milliseconds
  • Release Times: 0.3 seconds to 3 seconds
  • Compression Ratios: 1:1 to 1:Infinity
  • Threshold Control Range: +10 dBu to -20 dBu
  • Metering: 10 Segment LED Meter showing either Gain Reduction (-1 to -24 dB) or Output Level (14 to +14 dBu)
  • Overload LED: +21 dBu
  • Frequency Response: +/- 0.5 dB 20 Hz to 40 kHz
  • Signal to Noise: 110 dB
  • Power Requirements: 3.5 Watts - VPR Alliance Compliant
  • Unit Size: 1.5" x 5.25" x 7"
  • Unit Weight: 1.8 lbs.
