API3124V Discrete 4-Channel Mic/Line Preamp

Item#
N13-04074
$3,130.25

In Stock Available immediately!

  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

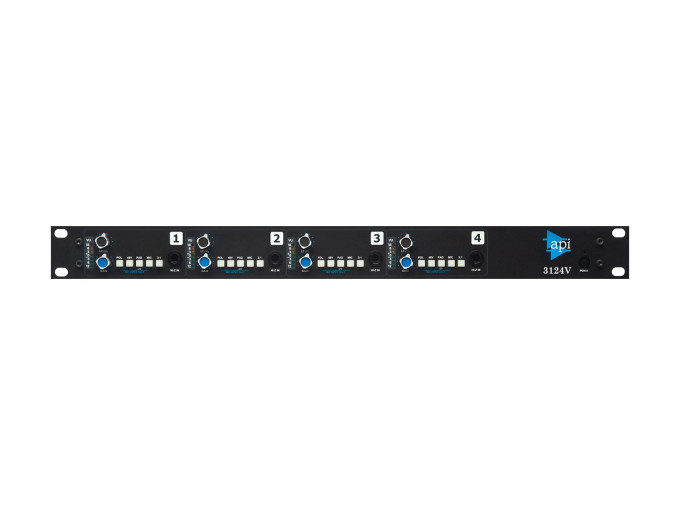

API 3124V

The 3124V is a four channel mic/line preamplier the features the same discrete circuitry found on all API preamp designs, including custom transformers and API 2520 op amps for incredible fidelity and detail on each channel. The 3124V is popular with drummers, and it's easy to see why: four premium preamps, each with switchable pads, phantom power, phase invert and 3:1/1:3 transformer tap selection means the 3124V can handle pretty much anything you throw at it—snare, kick, overheads, you name it. Of course, the 3124V's inherent flexibility means it's not limited to tracking drums: by including per-channel high-Z controls and balanced/unbalanced "Mic" switches, the 3124V can skillfully handle vocals, synths, guitars, basses, and more with signature clarity and warmth.

3124V Features

  • Four channel mic- and line-level preamp
  • Premium API circuitry on each channel for peerless clarity and signal transfer
  • Up to 65dB of gain
  • Accepts signals of up to +20dBu for a vareity of sources including synthesizers
  • Switchable phantom power, pad, polarity inversion, high impedance, transformer tap selection, and mic/line switches per channel
  • Exclusive API five-year parts warranty
  • Input Impedance: 1500 Ohms Mic, 470 K Ohms Un-Balanced, HI Z in
  • Output Impedance: Less than 75 Ohms Channel Outputs
  • Nominal Levels: XLR Channel Output +4 dBu
  • Stereo Output Level: Unbalanced: nominal -2, Balanced: +4
  • Frequency Response: +0, -5, 10 Hz to 20 kHz (-.5 at 10 Hz)
  • Noise EIN: -129 Mic, -125 Un-Bal.
  • Actual Measured Noise: Better than -91 dBm / below Nominal +4
  • Distortion: All Outputs at +4 out, .03%, at +22, .09% Max
  • Gain Range: 150 Ohms Input 10 dB Min., 65 dB Max (inc. PAD)
  • Un-Bal. Input 14 dB Minimum, 50 dB Max
  • VU Meter: Calibrated for XLR Outputs, OVU=+4 dBu, (-12, -6, -3, 0, +3, +6, +18)
  • Controls: GAIN, PAD (20 dB), 48Volts, POL (polarity), MIC (mic/un-bal), VU, AC
  • Power Consumption, Quiescent: 19.2 Watts
  • Size: 19" X 1.75" (1U) X 11" Deep
  • Weight: 10.38 lbs.
