API312 500-Series Mic Preamp

Item#
N13-04079
$755.25

In Stock Available immediately!

  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

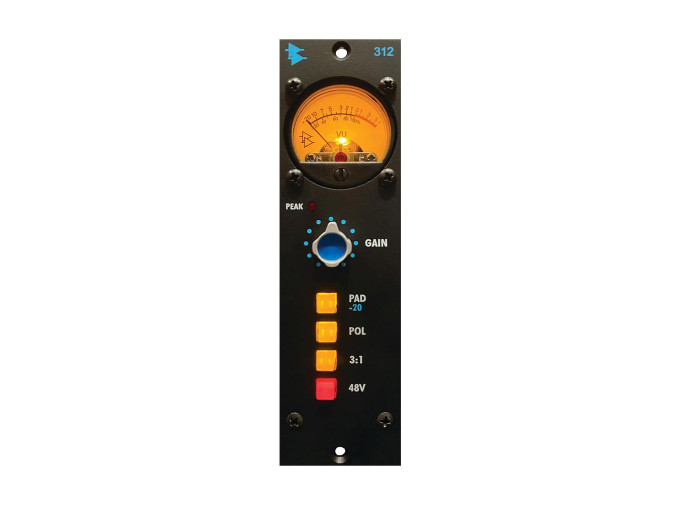

API 312

Adapted from Saul Walker's innovative design, the API 312 Mic Preamp is the heart of the API channel strip and one of the most sought-after preamps for the professional engineer, now adapted to the 500-series "lunchbox" format pioneered by API. Using their famed all-discrete circuitry, including API's proprietary 2520 op amp and custom output transformer, the 312 uses the same components found in all of API's preamp designs, from the 3124V, to the the A2D, to their studio consoles, in order to provide signature clarity and warmth to any microphone source. Offering up to 69dB of gain along with a -20dB pad switch, polarity inversion, selectable 48V phantom power, and of course the 3:1 transformer tap selection switch—unique to API—the 312 is a tried and true preamp for the discerning recordist.

312 Features

  • 500-series microphone preamp
  • Fully discrete, classic API circuitry lends warmth and character to your sources
  • Up to 69dB of gain
  • Phase, phantom, pad, and 3:1 transformer tap select switches
  • Backed by API's industry-exclusive, five-year warranty
  • Gain Range: +34 dB to +69 dB (+14 dB to +49 dB with pad)
  • Maximum Input Level: -4 dBu (+16 dBu with pad)
  • Maximum Output Level: +31 dBu
  • Peak LED: Set to +18 dBu output level
  • Output Impedance: Less than 75 Ohms, transformer balanced
  • Frequency Response: ±0.5 dB, 20 Hz to 40 kHz
  • Signal to Noise Ratio: 120 dB
  • Connections: 15-position 0.156" sp. edge connector
  • Power Consumption: ±16 Volts/DC @ 55 mA
  • Size: 1.5" x 5.25" x 6.75" deep
  • Weight: 1.5 lbs.
