V3KT from Antimatter Audio is a vector mixer and quadraphonic panner that sports cv logic outs for maximum versatility. Taking up a mere 6hp, the module equips one’s eurorack modular synthesizer rig with an array of indispensable features. Capabilities include quadraphonic panning, vector mixing, and tactile signal distribution. Users can now combine a variety of signal sources and create dynamic movements and mixes. Whether configuring a complex panning mix, sending a single signal to four different destinations, or perpetrating vector synthesis techniques, V3KT is more than up for the task.
Combo vector mixer & quad panner for Eurorack modular synths
Can operate as vector mixer and quad panner simultaneously
Maximum of -10V to +10V input range, with auto-calibration feature for optimization with narrower CV input ranges
Four CV outputs derived from panning/mixing algorithm that correspond to level of each VCA
XY Plot and Radial CV input modes
Automatically remembers last mode and calibration settings
LED visual feedback
DC-coupled signal path for use with audio or CV sources

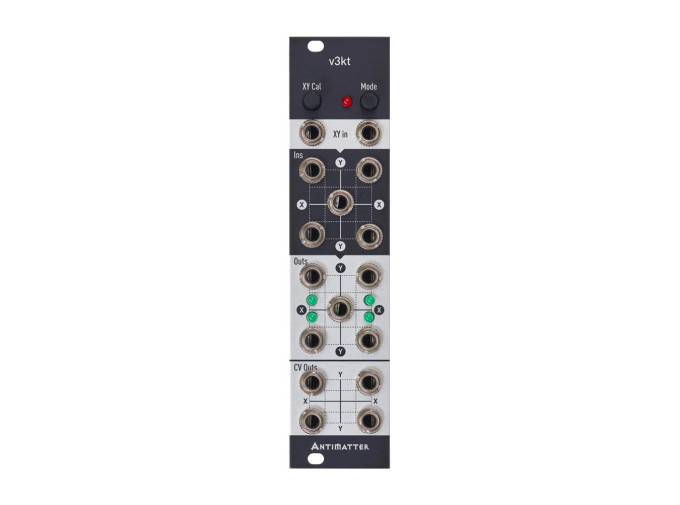

Antimatter Audio V3KT Quadraphonic Panner & Vector Mixer For Eurorack
Antimatter Audio's V3KT can combine 4 inputs to 1 output, send 1 input to 4 outputs, or mix 4 inputs to 4 outputs. It is controlled by X and Y CV inputs which then generate 4 different CV outputs. When a joystick's X and Y CV outs are connected to the X and Y CV ins the V3KT becomes an intuitive panner/mixer, but of course other CV controls can be used to generate evolving mixes and sounds.
