Antelope AudioLiveClock Master Clock

Antelope Audio LiveClock

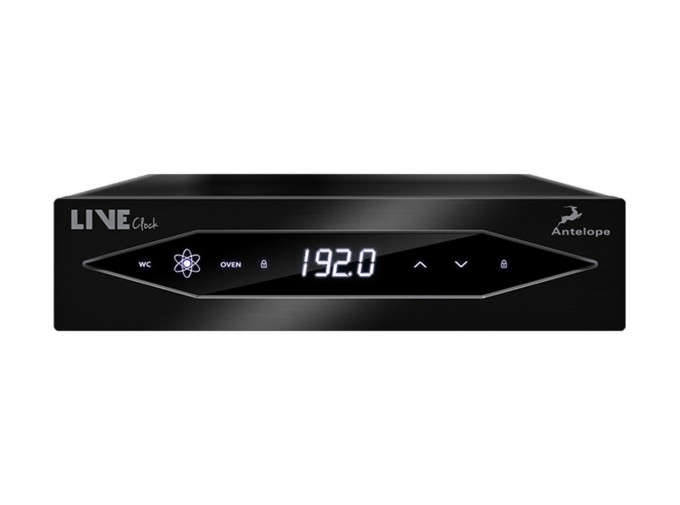

The Live Clock from Antelope Audio is a compact clock source that is equally suited for a home studio or live settings. It features the same clocking technology found in Antelope's Trinity and OCX HD in a smaller package. The 64-bit Acoustically Focused Clocking technology and oven controlled crystal oscillator provide precise, jitter-free clocking and sample rates up to 192kHz.

The front-panel touch screen and software control panel provide control over the functionality of the Live Clock including sample rate and the ability to lock the touch screen to prevent changes once the settings are dialed in. It can clock multiple devices simultaneously and features four word clock outputs on BNC, two S/PDIF, and two AES/EBU outputs. The Live Clock also features word clock input and 10MHz atomic clock input for use with the Antelope Audio 10MX or other atomic clock source. While this portable clocking solution is compact, it provides the same kind of quality and stability found on Antelope Audio's larger units.

LiveClock Features

• Portable master clock solution
• 64-bit Acoustically Focused Clocking technology
• Oven controlled crystal oscillator
• Front panel touch screen
• Sample rates (in kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
• USB connection for controller app and firmware updates
