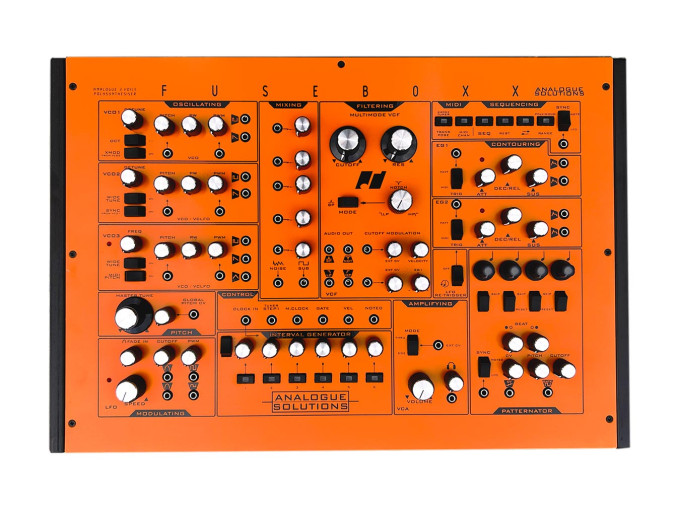

Analogue Solutions Fusebox X
Expanding upon the original, the Fusebox X contains three oscillators, a multi-mode filter, and a number of clever control methods rolled together into a single, fully-analog package. Though it does support MIDI connectivity, everything that the Fusebox X has to offer in terms of sonics harkens back to the golden age of synthesizers. Three VCOs, a multi-mode filter, an LFO, and two envelope generators provide the core ingredients for subtractive synthesis, augmented with MIDI control, patch points, and a few other neat twists from the minds behind Analogue Solutions.
Replacing the arpeggiator from the original, the new Fusebox X contains an onboard sequencer. Thus, the new edition contains a touch more musical versatility, especially when used without a MIDI controller. Combining this with the Interval Generator and Patternator opens up a world of musical possibilities, all from the Fusebox X itself. Though if you did want to use a keyboard or controller, the X now offers a three-note polyphonic mode, making it capable of triads, shell voicings, intricate contrapuntal lines, or anything in between.
The Fusebox X is undoubtedly designed for anyone looking for a synthesizer with an unapologetically analog character, which this instrument will deliver in spades.
Fusebox X Features
- Analog monosynth with 3 voltage-controlled oscillators
- VCO 1 offers cross modulation and an octave switch
- VCO 2 has a Wide range switch for a broader tuning range down to LFO frequencies, and also Osc Sync
- VCO 3 also offers a Wide tuning range and a Triangle wave, and MIDI pitch control can be disabled to use as a free-running oscillator
- Also equipped with white noise and a sub oscillator (from VCO 3)
- 12dB multimode filter offers lowpass, bandpass, highpass, and notch modes
- Lots of melodic possibilities even without any external control
- Internal sequencer
- Patternator offers unique ways to create and manipulate melodic loops on the fly
- Interval Generator allows you to transpose patterns on the fly
- Lots of CV connections for extensive modulation capabilities
- MIDI to CV converter with clock output for integrating with Eurorack modular rigs
- Patch Points: 48
- Dimensions: 45 x 14 x 30cm, 18 x 5.5 x 12in
- Weight: 4.5kg, 10lbs
