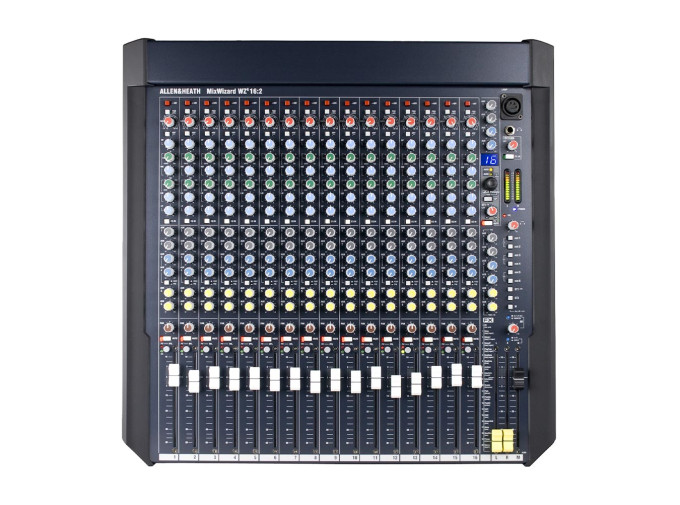

Allen & Heath MixWizard WZ4 16:2

Allen & Heath's MixWizard WZ4 16:2 contains everything one needs from an all-purpose mixer, including 16 high spec mic/line inputs, 4-band EQ, 100mm faders, bargraph metering, and 6 aux sends. If all that wasn't enough, the mixer contains a brand new digital FX engine, which puts 20 professional-quality effects at users' fingertips. There's also EQ in/out switching and the ability to integrate a USB interface with 16 channel soundcard for multitrack recording capabilities.

MixWizard WZ4 16:2 Features

  • 19″ Rack mountable
  • 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 6 Aux sends – 2x pre fade / 2x switched / 2x post fade
  • 2 Stereo returns
  • Dedicated mono output fader – can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri-colour, 12 segment bargraph metering
  • Twin FX engines with 20 studio quality FX presets
  • +48V Phantom Power
  • Signal and Peak LEDs
  • Lamp socket
  • USB multitrack recording option
  • Footswitch connector (mutes/unmutes the ST1 FX Return)
  • Total Channels: 16
  • Optional USB expansion card
  • 18x 100mm faders
  • 16x XLR mic preamps
  • 16x Phantom Power
  • 16x TRS line ins
  • 2x XLR outs, 1x XLR main mono out
  • 16x TRS direct outs
  • 2x TRS A,B outs
  • 4-band EQ w/ 2 sweepable mids
  • Integrated effects section
  • Aux Sends: 2x Pre, 2x Switched, 2x Post
  • Send/Return I/O: 6x TRS (Aux Out), 2x Stereo
  • Channel inserts
  • 1x 1/4" headphone input
  • Talkback functionality
  • Dimensions: 7.7" x 20" x 20.9"
  • Weight: 35lbs
