Allen & HeathZED60-14FX 14-Channel Mixer With USB

Item#
N13-8394
$659.99

Preorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
Notify me when this is in stock
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed
main product photo

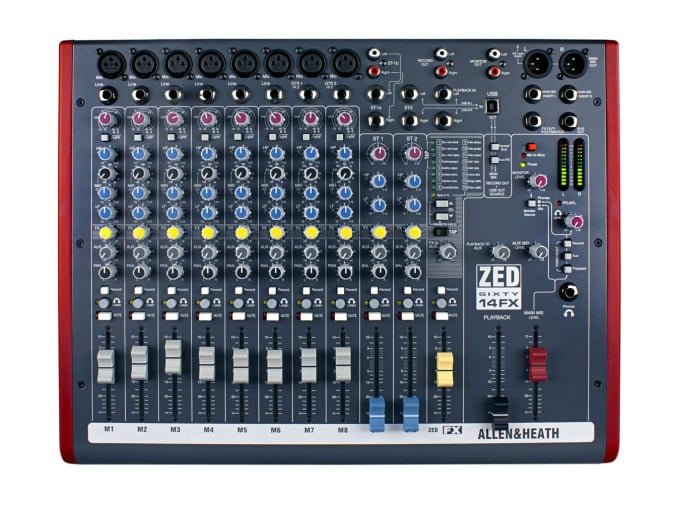

Allen & Heath ZED60-14FX

Allen & Heath's ZED60-14FX is a compact and portable mixer that is ideal for studio or stage. It features eight mono channels, two of which feature high impedance jacks that can accept line or low level input from a guitar pickup, meaning users can connect guitars directly to the mixer without the need for external DI equipment. Additionally, these inputs promote that characteristic analog warmth that Allen & Heath are known for. While all of this is certainly constitutes a fine mixer, the real icing on the cake is the integrated USB I/O, which allows users to capture pristine stereo recordings just about anywhere. Combine that with a meticulously-constructed effects section that boasts 16 time-delay effects, and it's easy to see why Allen & Heath consistently sets the standard for both live and studio mixing consoles.

ZED60-14FX Features

  • 8 mic/line inputs
  • 60mm faders
  • 3-band, swept-mid EQ
  • USB Audio I/O
  • 1x pre-fade aux send
  • 1x FX send
  • 2x stereo inputs
  • Individual 2-track record outs
  • Integrated effects section with 16 effects
  • XLR main stereo outs w/ inserts
  • 48V Phantom Power
  • DI level switching + gain boost
  • Analog mixer w/ USB
  • Channels: 14
  • USB 2x2 connectivity
  • 13x 60mm faders
  • 8x XLR mic pres
  • Inputs (Line): 8x 1/4", 1x Dual RCA (Stereo), 2x 1/4" (ST1), 2x 1/4" (ST2)
  • Inputs (Alt): 2x 1/4" (USB L,R), 2x 1/4" (Hi-Z)
  • Outputs (Primary): 2x XLR (main), 1x Dual RCA Stereo (monitor)
  • Outputs (Alt): 1x Dual RCA stereo
  • 1x USB Type B
  • Effects: Delay, Reverb, Flange, Chorus
  • A/D Res: 24-bit/48kHz
  • Aux sends: 1x Pre Aux, 1x FX
  • EQ: 3-band, sweepable mids; 2-band on stereo channels
  • Send/Return: 1x 1/4" (aux), 1x 1/4" (FX out, footswitch)
  • Inserts: 2x 1/4" (main)
  • Headphones: 1x 1/4"
  • Dimensions: 3.7" H x 17.3" W x 13.6" D
  • Weight: 13.6 lbs
