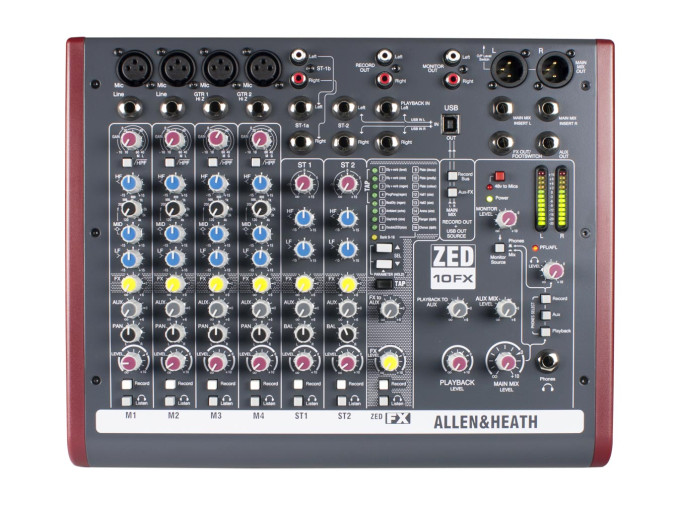

ZED-10FX is a portable and compact mixer that makes an excellent component for studio and stage. It features everything required to capture pristine stereo recordings (sans microphone, of course). Unlike its ZED-10 sibling, the ZED-10FX features 16 expertly-crafted time-delay effects, all of which are easily accessed via the unit's ergonomically considerate front panel.
4 mic/line inputs, 2 with Class A FET high impedance inputs
Input Operating Levels: Mono channel (XLR) Input -10 to –60dBu for nominal (+11dBu in max); Mono channel Line Input (Jack socket) +10 to –40dBu (+31dBumaximum); Stereo Input (Jack or phono sockets) 0dBu nominal (control = Off to +15dB)
Output Operating Levels: L/R Outputs ( XLR) Normal/DI out 0dBu/-30dBu +21dBu/-9dBu maximum; Aux & FX Outputs (Jack sockets) 0dBu nominal. +21dBu maximum; Record & Monitor Outputs (phono sockets) 0dBu nominal. +21dBu maximum.
Frequency Response for Mic in to Mix L/R Out, 30dB gain +0.5/-1dB 10Hz to 30kHz.
Frequency Response for Line in to Mix L/R out 0dB gain +0.5/-1dB 10Hz to 25kHz
Frequency Response Stereo in to Mix L/R out +0.5/-1dB 10Hz to 30kHz
Analogue Headroom from nominal (0Vu): 21dB
USB in & out headroom from nominal (0Vu): 14dB
