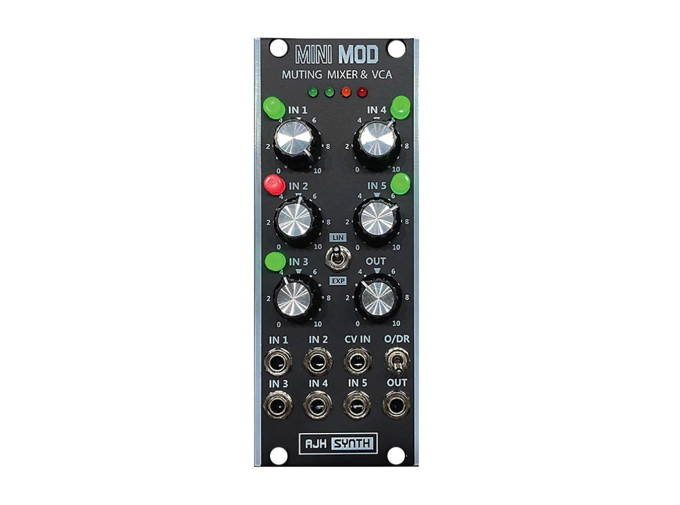

AJH Synth MiniMod Muting Mixer
Sum down your oscillators, full voices, or whatever you're mixing with AJH Synth's Muting Mixer & VCA, a five-input mixer inspired by flavorful and dynamic mixing stylings. Each of the Muting Mixer's inputs has a dedicated volume attenuator for achieving the perfect blend while the complimentary LED buttons are great for reference or performative muting with the ability to mute multiple channels at once. The topside's four-segment LED meter allows you to monitor how healthy your signal is and how close it is to clipping, and interestingly enough, you can add extra distortion to your final sound with the engageable overdrive circuit for a more smooth and driven final tone. Not only can the Muting Mixer act as a great mixdown module, but utilizing the control voltage input with an envelope, LFO, or any CV turns it into a fully fledged VCA with options for linear or exponential response. Meant for creating meaningful and deep blended textures, the Muting Mixer & VCA is a solid choice for anyone looking to balance and push your sound.
MiniMod Muting Mixer Features
- Five-channel mixer module
- Individual inputs and attenuators with LED mute buttons
- Four segment LED meter for following levels
- CV input to turn into a five-input VCA
- Linear/exponential switch to determine CV input response
- Engageable overdrive circuit for adding tube-like warmth and drive to your final sound
- Eurorack module
- Width: 10hp
- Depth: 26mm
- Current draw: 55mA @ +12V, 25mA @ -12V
