After Later AudioCanyon Subharmonics Generator

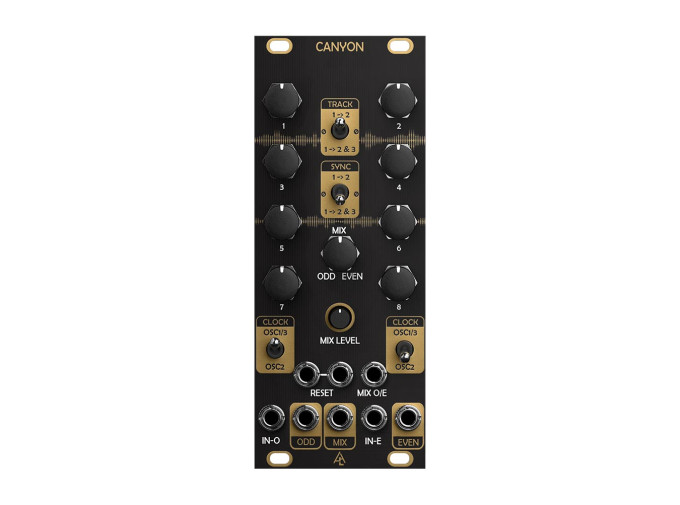

After Later Audio Canyon

One of the centerpiece control modules in After Later Audio's COCO series, the Canyon is a subharmonic generator, router, and mixer that connects three oscillators via ribbon cables for complex sounds and modulation. One way to think of this is as a clock divider with independant level controls for eight different divisions. These can be separated with Odd and Even outputs, or mixed with the Mix knob and corresponding Mix output. Odd and even bands each have their own switches for either Osc 1/3 or Osc 2 letting you create interesting modulation and audio effects. For Osc1/3, there is a jumper setting that lets you choose between either one or both. The Mix level can be CV controlled and LFO mode, the Canyon can be used as a stepped voltage generator with a reset CV input. Customize your complex oscillator with the Canyon subharmonic control centerpiece from After Later Audio.

Canyon Features

• Centerpiece for COCO series and requires Cascades and Brooks oscillators
• Ribbon cable connections on the rear for connected Cascades and Brooks oscillators
• Subharmonic generator which functions as a clock divider, as well
• Route tracking and sync sources
• 8 Level controls for Odd and Even subharmonic frequency bands
• Odd, Even and Mix output
• CV controllable Mix crossfader for Odd and Even bands
• When Cascades and Brooks are in LFO mode, Canyon can be used as stepped voltage source
