ADDAC SystemADDAC203 CV Mapping (Red)

Item#
N13-05174
4hp
$169.99

No Longer Available Contact us for a recommendation.

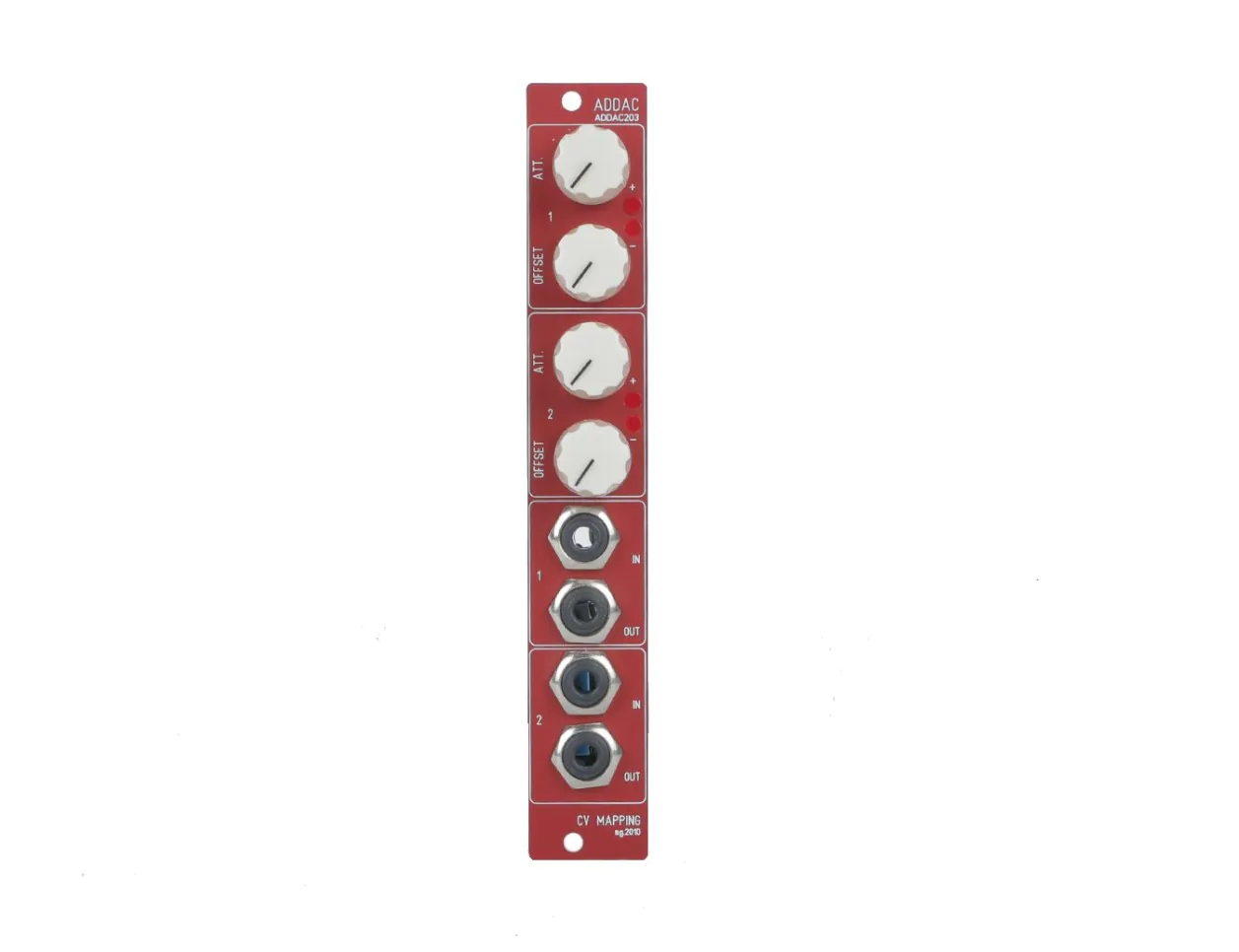

ADDAC System ADDAC203

Apply precision and finesse to your CV with ADDAC System's ADDAC203, a dual channel CV mapping module that resizes your voltage. Easily control how wide the signal reaches with per channel attenuation and then apply an offset to configure it to any range you see fit. The ADDAC203 features LEDs per channel for visual help in determining your output CV's polarity.

ADDAC203 Features

  • Dual channel CV mapping
  • Per channel attenuation and CV offset controls
  • LEDs indicate output polarity
  • Eurorack module
  • Width: 4hp
  • Depth: 30mm
  • Current draw: 50mA @ +12V, 50mA @ -12V
