ADDAC System ADDAC104

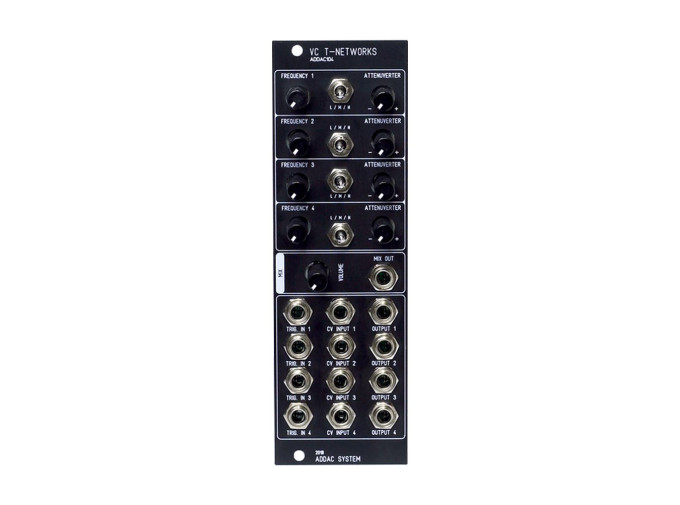

The ADDAC 104 VC T-Networks is a four-voice source of percussive sounds, great for kicks, basses, and toms. Inspired by the twin-T architecture found in many analog drum machines, the 104 adds voltage control to each of the four voices.
Each channel has a frequency range switch as well as trigger input and CV input with attenuverter. Due to the nature of the circuit, the CV inputs are not calibrated to track 1V/Oct. The top two channels are better suited to higher frequency ranges, while the bottom channels are more suited to lower frequency ranges. The trigger input uses a gate to trigger converter and accepts signals well into audio rates, turning the module into a strange sort of filter when triggered at high frequencies.
There are four individual outputs as well as a mix output with dedicated volume control. The VC T-Networks is a fantastic source of percussive sounds that harkens back to vintage analog drum machines and adds voltage control, broadening the range of possible sounds.
- Four-voice percussion source
- CV inputs with attenuverters
- Gate to trigger converter
- Accepts trigger signals up into audio rate
- Individual outputs
- Mix output with volume control
- Frequency range switches
- Eurorack module
- Width: 8hp
- Depth: 25mm
- Current draw: 50mA @ +12V, 50mA @ -12V
