Adam A3X (Single)
The ADAM A3X 2-way studio monitor is ADAM Audio's smallest monitor to date, making it perfectly suited for audio environments where space is limited but sound must not be. The A3X delivers acclaimed ADAM sound quality from a small footprint by using an X-ART tweeter for the higher frequencies guaranteeing crystal-clear music reproduction.
The A3X monitor's 4.5" basket driver handles the lower registers. The diaphragm is made from carbon fiber, a material that is very light but very stiff and therefore capable of delivering coloring-free sound. Two built-in 25W amplifiers power each of the drivers directly.
A very handy and exclusive technology found in the 2 smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.
This new technology connects 2 ADAM A3X speakers allowing you to control the system's stereo volume from either speaker's gain control. The A3X is a natural for mixerless desktop applications where overall system volume needs to be adjusted easily.

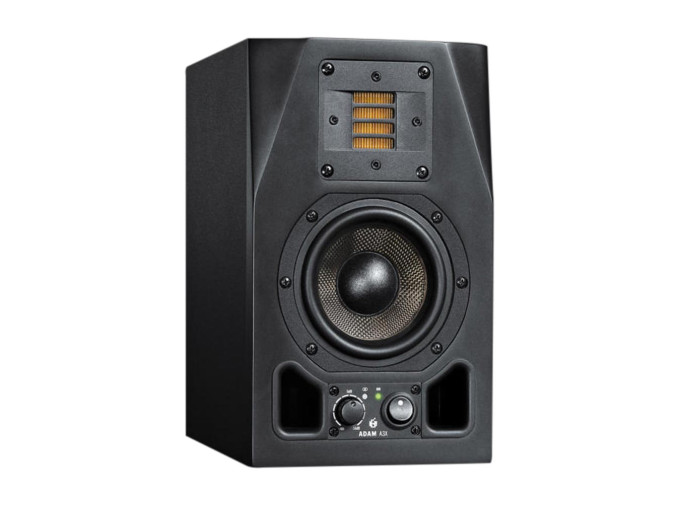

The front of the ADAM A3X sports dual ports for surprisingly low frequency response down to 60Hz. The front panel is armed with power and gain controls. The rear panel includes a tweeter gain control as well as balanced (XLR) jacks and unbalanced (RCA) jacks, giving the ADAM A3X monitor greater connection flexibility.
A3X Features
- Crystal clear music reproduction
- Suited for all environments where space is limited
- Dual ports provide low frequency response down to 60Hz
- Two built-in 25-Watt amplifiers
- Tweeter gain control
- Balanced (XLR) jacks and unbalanced (RCA) jacks
Mid-Woofer
- Number: 1
- Basket: 4.5" (120 mm)
- Voice coil: 1" (25 mm)
- Cone material: Carbon Fiber
Tweeter
- Number: 1
- Type: X-ART
- Diaphragm area: 4 inch (2420 mm)
- Equiv. Diaphragm: 2" (56 mm)
- Velocity transform ratio: 4:1
- Diaphragm weight: 0.17 g
Built-in Amplifiers
- Mid-Woofer: 1
- Type: A/B
- Amp. Power RMS / music: 25 W / 40 W
- Tweeter: 1
- Type: A/B
- Amp. Power RMS / music: 25 W / 40 W
Control panel
- Input Sensitivity: -∞ to +14 dB
- Tweeter gain: ±4 dB
General data
- Input Connectors: XLR/RCA
- Frequency response: 60 Hz – 50 kHz
- THD: 90dB/1m > 100 Hz ≥0.8 %
- Long term output: ≥98 dB
- Max. peak: ≥106 dB
- Crossover frequencies: 2800 Hz
- Input impedance: 10 KOhm
- Weight: 10.1 lb (4,6 kg)
- Magnetically shielded: No
- Dimension (Height x Width x Depth): 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm)
- Warranty: 5 Years
