Power Distribution Board

ACL Power Distribution Board

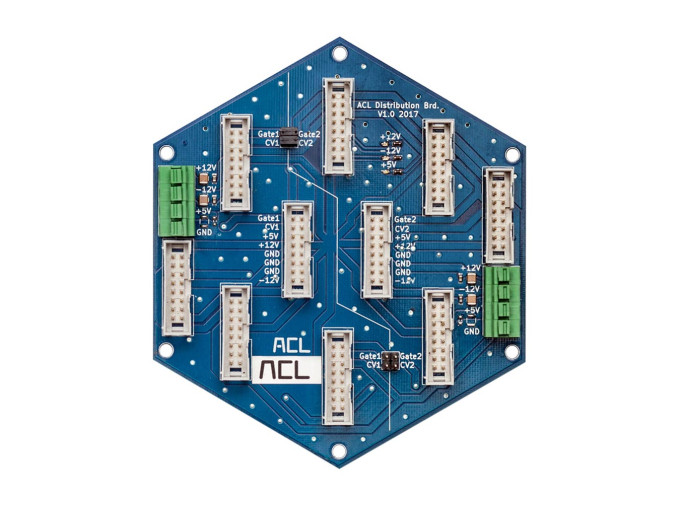

ACL’s Power Distribution Board is a star-shaped power distribution board that facilitates a consistent flow of power to connected modules, providing ample sounds and performance. It enjoys low impedance ground and power lines in tandem with onboard decoupling of its +12V and -12V rails. In other words, everything one needs to elevate their modular system to previously unimagined heights.

Power Distribution Board Features

• Low impedance bus board
• Decoupled +12V and -12V rails
• Star-shaped distribution system
• Ten connectors per board
• Multiple boards can be connected to a Bar PSU (sold separately)
• Two individual CV/Gate channels per busboard
