Oktave

ACL Oktave

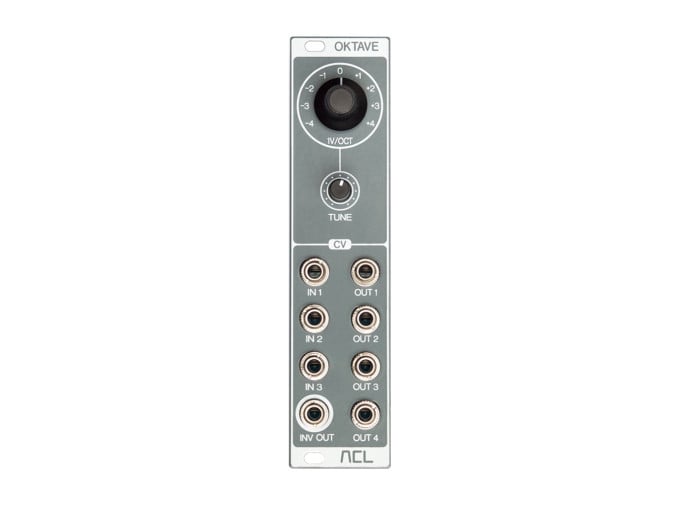

ACL’s Octave is a sophisticated processing module oriented around he transposition of V/Oct control voltages. It features three high-impedance inputs, one low-impedance inverting output, and a sturdy 9-position rotary control. The latter control extends from -4V to +4V, with 0V at the center. Consequently, the sums of inputs 1, 2, and 3 are transposed in increments of 1V.

Oktave Features

• Fine tune incoming CV (+/- 1 octave)
• Switch up/down from zero across four octaves
• 3 cv inputs
• 4 cv outputs
• 1 inverted output
