ACL Envelope X3 Triple ADSR

Item#
N13-9037
21hp
In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
  • Extended Warranty
  • Low Price Guarantee
$457.00

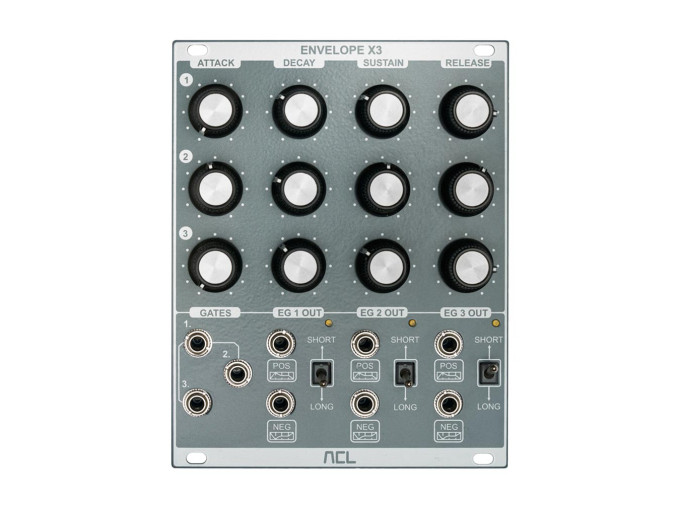

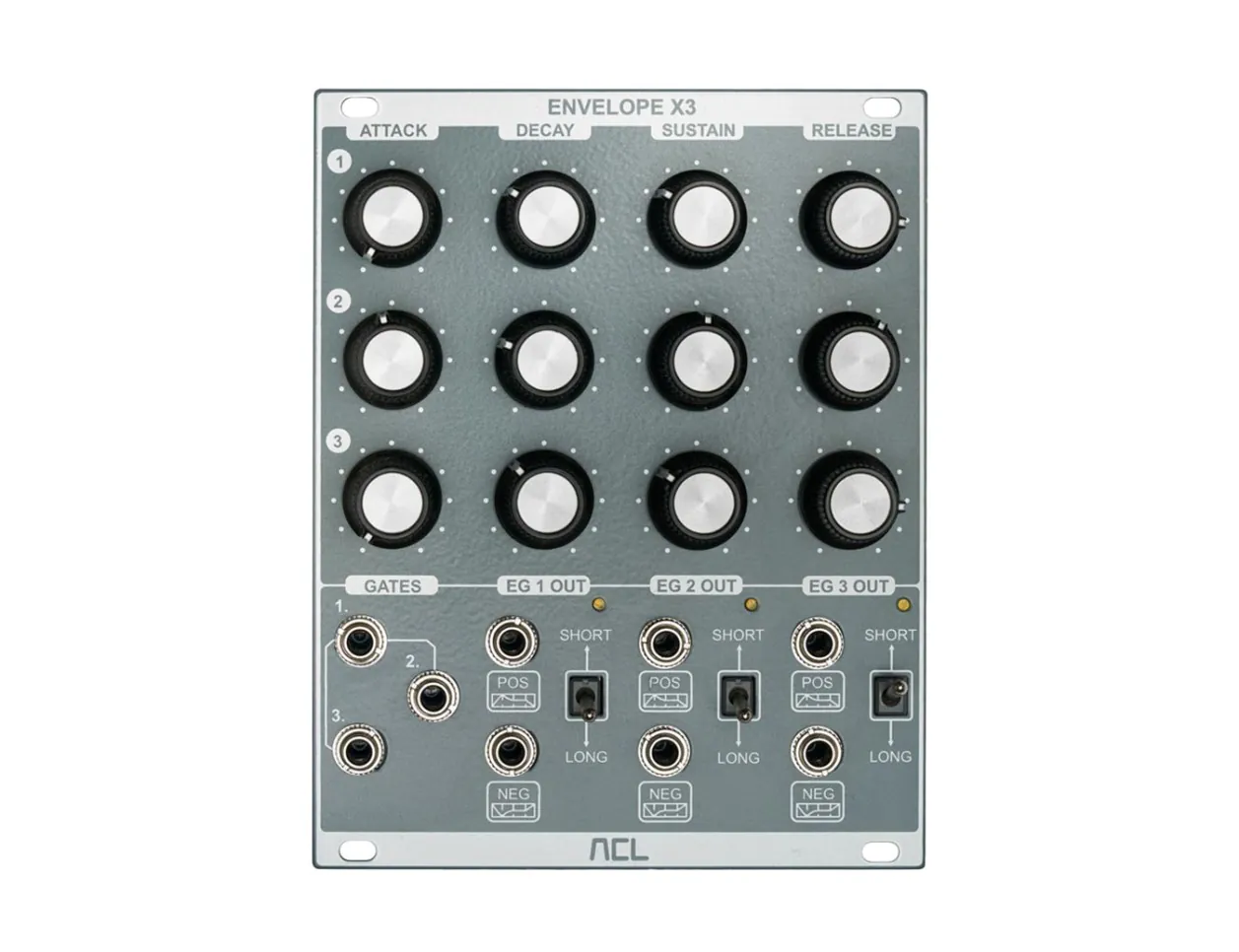

ACL Envelope X3

Envelope X3, from ACL, is a triple ADSR envelope generator modeled on those of the Roland 100M modular synthesizer. Not content to be a mere emulation, the module boasts even shorter envelope time parameters. Its rapid response time makes it ideal for drums, bass, and any other sound that requires a snappy envelope. However, it can also handle longer envelopes with grace, making it ideal for drones, pads, and more.

Envelope X3 Features

  • Triple ADSR module
  • Indepndent gate inputs
  • One inverted and non-inverted envelope per-channel
  • Gate 1 is normalled to the 3 subsequent envelopes
  • Low temperature drift
  • Eurorack module
  • Width: 21hp
  • Depth: 22mm
  • Current draw: 36mA@+12V, 23mA@-12V
