Abyss DevicesLPG Low Pass Gate

Abyss Devices LPG

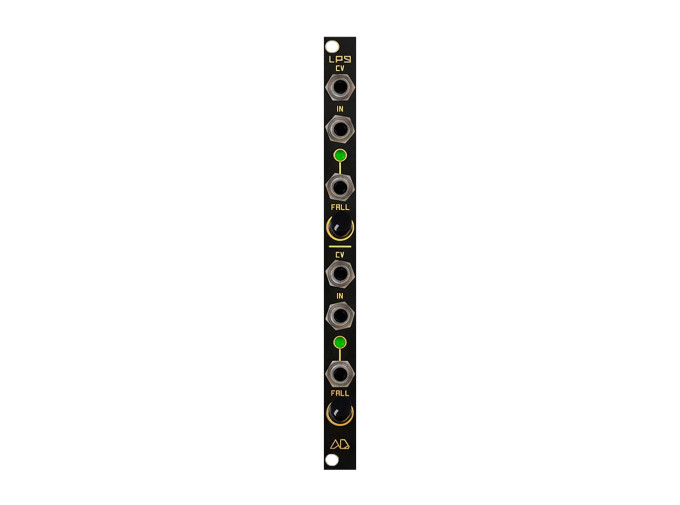

More than just a passive lowpass gate, Abyss Devices' LPG gives you two handmade vactrols that have been carefully selected for similar response times, along with other unique options. The top lowpass gate's CV and input are normalized to the bottom making it easy to spread out your signal, or split a mono sound into a stereo spread. Both channels feature dedicated Fall trimmers on the front letting you dial in a snappy, quick response, or a long ~2s long decay. Each vactrol is installed in a socket making it easy to experiment with other types and a dip switch on the back lets you bypass the fall trimmer completely so you can hear the pure response curve of the vactrol. A small SMD trimmer on the back adjusts the high frequency cut control and the output is muted when no CV is present. At just 2hp, this is a handy, musical sounding, feature-rich LPG that can be customized to your liking.

LPG Features

• 2x Channel passive LPG each with Fall controls
• Socket installed vactrols for easy experimentation
• Fall trimmer functions as volume control and adjust range from very short to about 2s long
• LED monitors CV input
• Dip switch on rear of the module bypasses Fall trimmer for natural response curve
• Muted output when no CV is present
• SMD trimmer on back adjusts the high cut amount
