Abyss DevicesATV Dual Attenuverters + Offsets
Item#
N13-05964
2hp
$120.00
- Free
Shipping - No Hassle
Returns - Extended
Warranty - Low Prices
Guaranteed

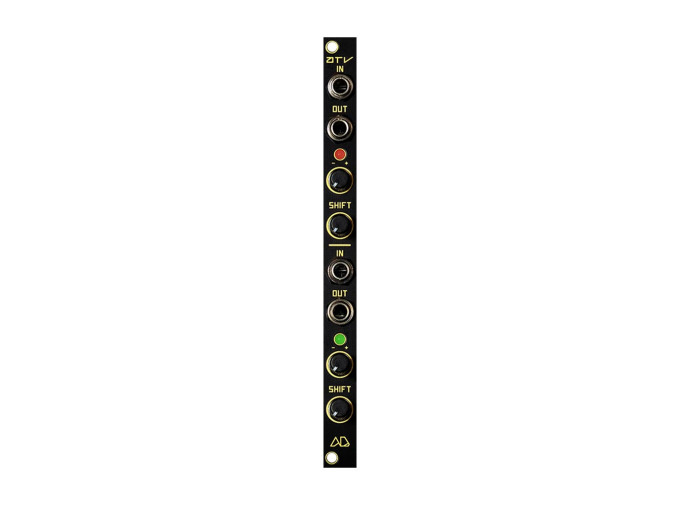

Abyss Devices ATV
Abyss Devices' ATV is a compact dual channel attenuverter/offset that works with both audio and CV signals, giving you 2x gain in either positive or negative. Channel 1 is normalized into channel 2 which means you could have an inverted copy of any signal and with green/red colored LEDs to indicate voltage, it's easy to know which is which. A shift knob offsets the voltage by up to 10v in either negative or positive directions. ATV from Abyss Devices is a great addition to any rack looking for a small, simple utility.
ATV Features
- 2-Channel offset/attenuverter
- Attenuverter knob inverts signals
- Shift knob adds an offset to the voltage
- Channel 1 normalized to channel 2
- Sends out constant voltage when nothing is patched
- Green/red LEDs for indicating positive or negative
- Eurorack module
- Width: 2hp
- Depth: 20mm
- Current draw: 20mA @ +12V, 20mA @ -12V
