Olivella ModularImágenes Stereo State Variable Filter

Olivella Modular Imágenes

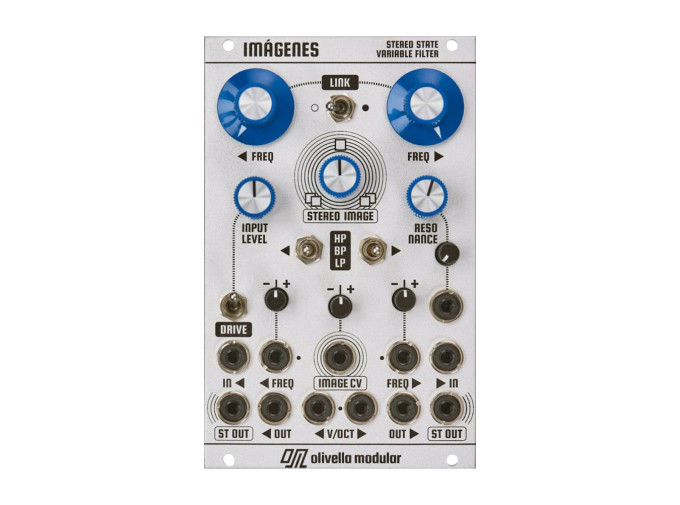

Olivella Modular's Imágenes is a flexible stereo filter for Eurorack modular synthesizers, able to easily Link certain parameters together for ease of use or use both sides entirely independently. Internally, Imágenes is a dual two-pole filter based on an OTA design with switchable lowpass, bandpass, and highpass modes for each filter. Each side features its own Cutoff Frequency control, but the Link switch allows you to use them in tandem if desired. Input Level with Drive and Resonance are shared controls for both channels, ensuring there's no undesirable level mismatches. The filters offer their own direct outputs, but Imágenes also features special Stereo Outputs governed by the Stereo Image control. This handy control, also with a CV input, allows you to dynamically pan the left and right channels from full stereo to mono and through to inverted stereo imaging. If you're seeking juicy filtering with some stereo fun, Imágenes won't disappoint.

Imágenes Features

• Stereo/dual mono state-variable filter
• 12dB/oct OTA design
• Switchable lowpass, bandpass, and highpass filters per channel
• Input drive control
• Resonance control
• Direct outputs for each filter
• Stereo Image outputs with panning
