Modulaire MaritimeAalat 1U Multi-Utility Module

Modulaire Maritime Aalat

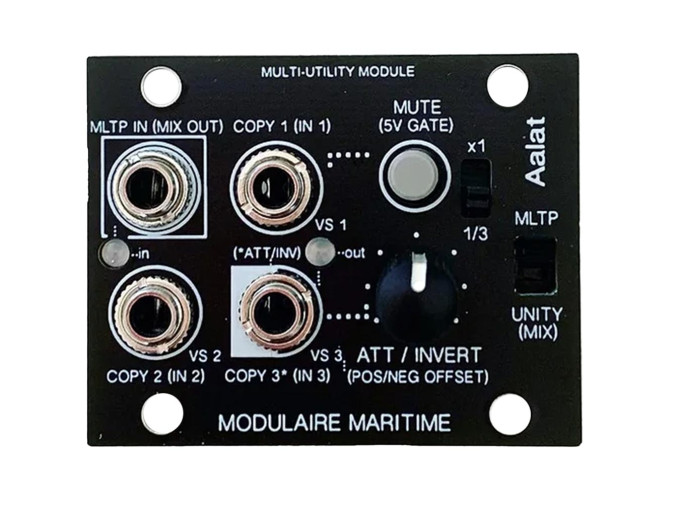

Aalat by Modulaire Maritime is a highly flexible multi-utility module packed into a 1U Eurorack module, capable of operating as a buffered multiple, unity mixer, attenuverter, offset generator, and more. Aalat features two primary operating modes: MLTP (multiple) and Unity (mix), which has variable effect on the role of its inputs and outputs. As you might expect, MLTP mode makes Aalat function as a buffered multiple, with the third output featuring an attenuverter for scaling and polarizing signals. Even when no signal is patched in, you can use Aalat as a fixed voltage source. But in Unity mode, the inputs and outputs swap roles, summing signals together with a mute on channel 1 and an attenuator on channel 3.

Compatible with their Aalat X module, you can expand Aalat to feature attenuators on the first two channels as well. Fit some additional function into your 1U row with Aalat from Modulaire Maritime.

Aalat Features

• Multi-purpose utility module
• Two primary operating modes: MLTP buffered multiple and Unity gain mixer
• 5V voltage source when unpatched in MLTP mode
• Attenuverter on channel 3
• Unity mixer mode
• Channl 1 mute switch
• Channel 3 attenuverter
• Expandable with Aalat X for attenuators on first two channels
