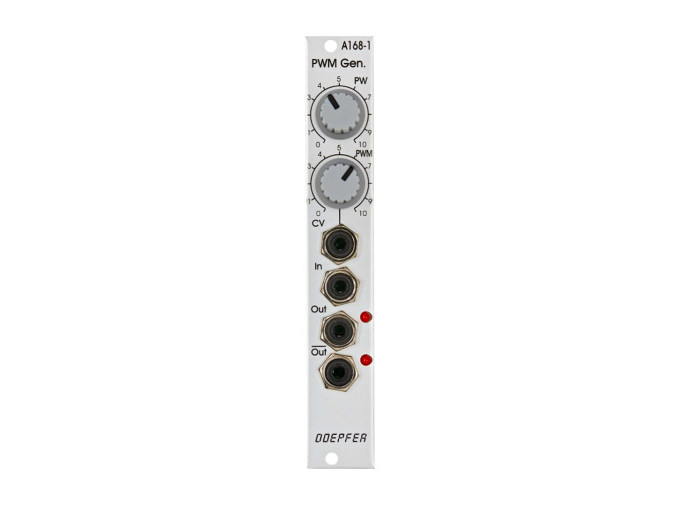

DoepferA-168-1 PWM Module

Doepfer A-168-1

Doepfer's A-168-1 is a novel comparator-based module that creates modulatable pulse signals from any incoming signal: hence its designator, the Pulse Width Modulation Generator. Just apply any sloped VCO or LFO signal (triangles and saws work great), and the module produces a rectangle waveform with continuously variable pulse width: users may even control the output pulse width with a control voltage, enabling PWM effects with oscillators that otherwise do not incorporate that feature. 1980s basslines await!

A-168-1 Features

• Pulse-width generator
• Produces a pulse-width signal from an external triangle, saw, or sine wave
• Manual PWM controller
• PWM modulation input with corresponding attenuator
• Signal input
• Regular and inverted outputs
