ADDAC SystemADDAC203 Rev02 CV Mapping

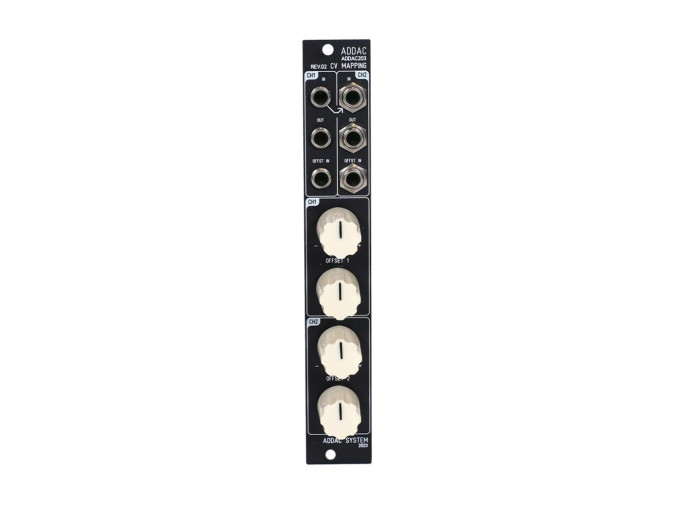

ADDAC System ADDAC203 Rev02

ADDAC203 is an updated revision of their dual-channel offset/attenuverter module that places the jack on top, adds a CV input, and comes in a handsome black color. When nothing is patched, each output sends a +5/-5v offset and channel 1 gets normalized into channel 2. Using the jumper on the back, you can get 1x unity gain to be the max or 10x for a strong boost. Offsets/atteuverters are essential in any rack that's looking to manipulate voltage and the ADDAC System 203 Rev2 is a wonderful, compact option.

ADDAC203 Rev02 Features

• Dual channel attenuverter/offset
• Adds or subtracts 5v
• 5v Offset generated when nothing patched
• Gain knob can be 1x for unity or 10x for signal boosting
• Channel 1 normalized to channel 2
• CV Control over offset
