Patch VT 128-Point Analog Patchbay with Digital Control

Flock Audio Patch VT

Modern studios need modern routing solutions, and Flock Audio's Patch VT is a stellar 128-point patchbay with unmatched digital routing capabilities. Positioned between the standard Patch model and the flagship Patch XT, 64 inputs and 64 outputs under control of the Patch App and Patch App DX allows for quick and seamless reconfiguration of your studio—all without a mess of cables. Of course, all signal paths remain fully analog but under tight and precise digital control for routing and splitting signals around your studio.

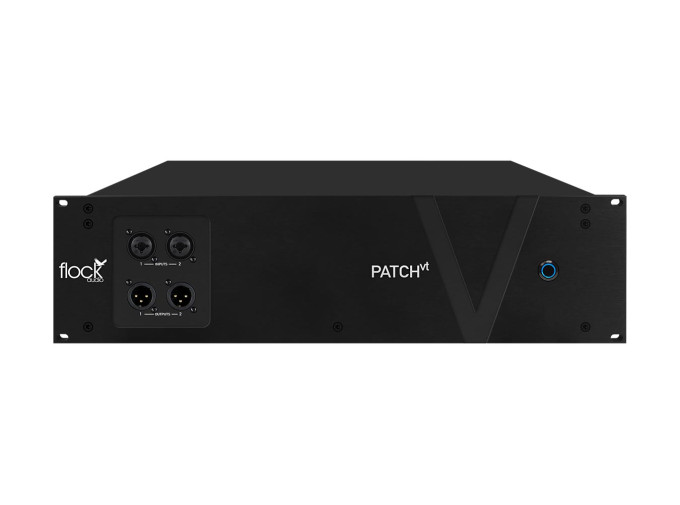

Stacked into a three rack-unit chassis, the rear of the Patch VT contains vertically mounted DB25 connectors for all inputs and outputs. As a courtesy, a pair of XLR inputs and outputs are available on the front for demoing new gear without the need to tear apart your studio—a waste of effort in case it doesn't end up working out for your needs. The USB port allows for connection to a host computer running the Patch App, where you can assign routings, enable up to 32 channels of phantom power, recall configurations, link with other Patch units, and more. Speed up the flow of your sessions with Flock Audio's Patch VT.

Patch VT Features

• Digitally-controlled 128-point patchbay
• 64 inputs and 64 outputs
• DB-SUB connectors (TASCAM pinout)
• Patch App and Patch App DX control presets, configurations
• Mac and Windows compatibility
• Courtesy XLR I/O pair on the front
• Up to 32 channels of 48V phantom power
• Audio cables not included
