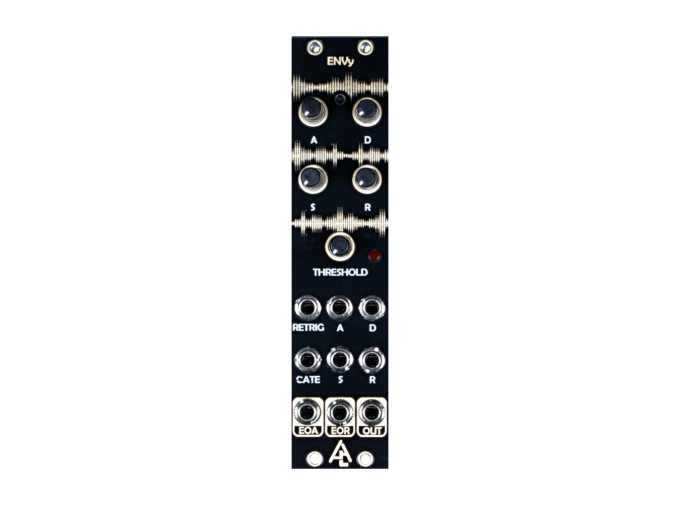

After Later Audio ENVy

The ENVy from After Later Audio is an ADSR envelope generator that provides functionality not traditionally found on a standard ADSR, such as CV control and trigger outputs. It uses the CEM3310 chipset and has your standard attack, decay, sustain, release controls, but also features CV control over the individual stages.

A threshold knob sets the minimum voltage level needed to initiate the envelope. The end of attack trigger goes high after the attack portion of the envelope is complete, while the end of release goes high after the envelope ends. The retrigger input allows you to re-engage the attack portion of the envelope while the gate input is still high. The total time range of the envelope can be adjusted by a jumper on the back of the module. ENVy is an envelope generator that is compact and has advanced features that make it a versatile and playable module.

ENVy Features

  • ADSR envelope based on the CEM3310 chipset
  • CV control over each portion of the envelope
  • Threshold level control
  • End of attack trigger
  • End of release trigger
  • Jumper to control overall envelope time
  • Retrigger input
  • Eurorack module
  • Width: 6hp
  • Depth: 25mm
  • Current draw: 28mA @ +12V, 25mA @ -12V
