Radial EngineeringProD2 Passive Stereo Direct Box

Item#
N12-1412
$199.99

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

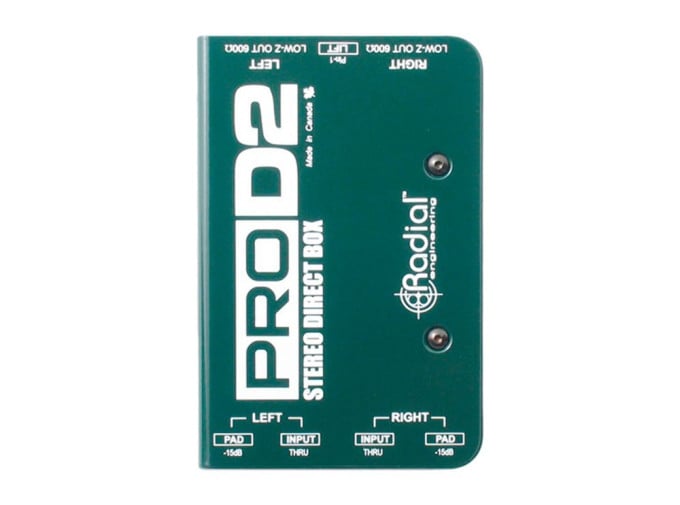

Radial ProD2

A high-quality, passive direct box that uses 2 proprietary custom-made transformers, one for each channel, for both impedance conversion and isolation. Linear from 20Hz-18kHz, with low distortion and virtually zero phase distortion makes it perfect for live or studio performances. Because of the transformer isolation, problems such as hum and buzz caused by ground loops are eliminated, making it very easy and hassle-free to use. Features include 1/4" thru/input, -15dB pad, and ground lift protected from damage by a protective front panel. Heavy-duty construction, baked enamel finish, and 600ohm balanced output. 3" x 5".

ProD2 Features

  • Passive stereo direct box
  • Dual proprietary transformer for impedance conversion and isolation
  • Linear from 20Hz–18kHz
  • Low distortion and zero phase distortion
  • XLR input
  • 1/4" thru/input
  • -15dB pad
  • Ground lift
  • Protective front panel
  • Heavy-duty construction
  • Baked enamel finish
  • 600ohm balanced output
  • 3" x 5"
  • Frequency Response:  20Hz to 20kHz (+/-2.5dB)
  • Harmonic distortion:  0.01% (20Hz to 20kHz)
  • Phase distortion:  1 degree at 1Khz / 8 degrees at 20Hz
  • Common mode rejection:  -90dB @ 60Hz
  • Input impedance:  100kOhms
  • Output impedance:  600 Ohms
  • Input pad:  -15dB
  • Size (W x H x D):  3.25"x 5”x 1.875" / 83mm x 127mm x 48mm
  • Weight:  1.95lbs / .9kg
  • Construction:  14-gauge steel chassis & shell, baked enamel finish
  • Options:  J-Rak rack shelf
  • Warranty:  3 year limited warranty
