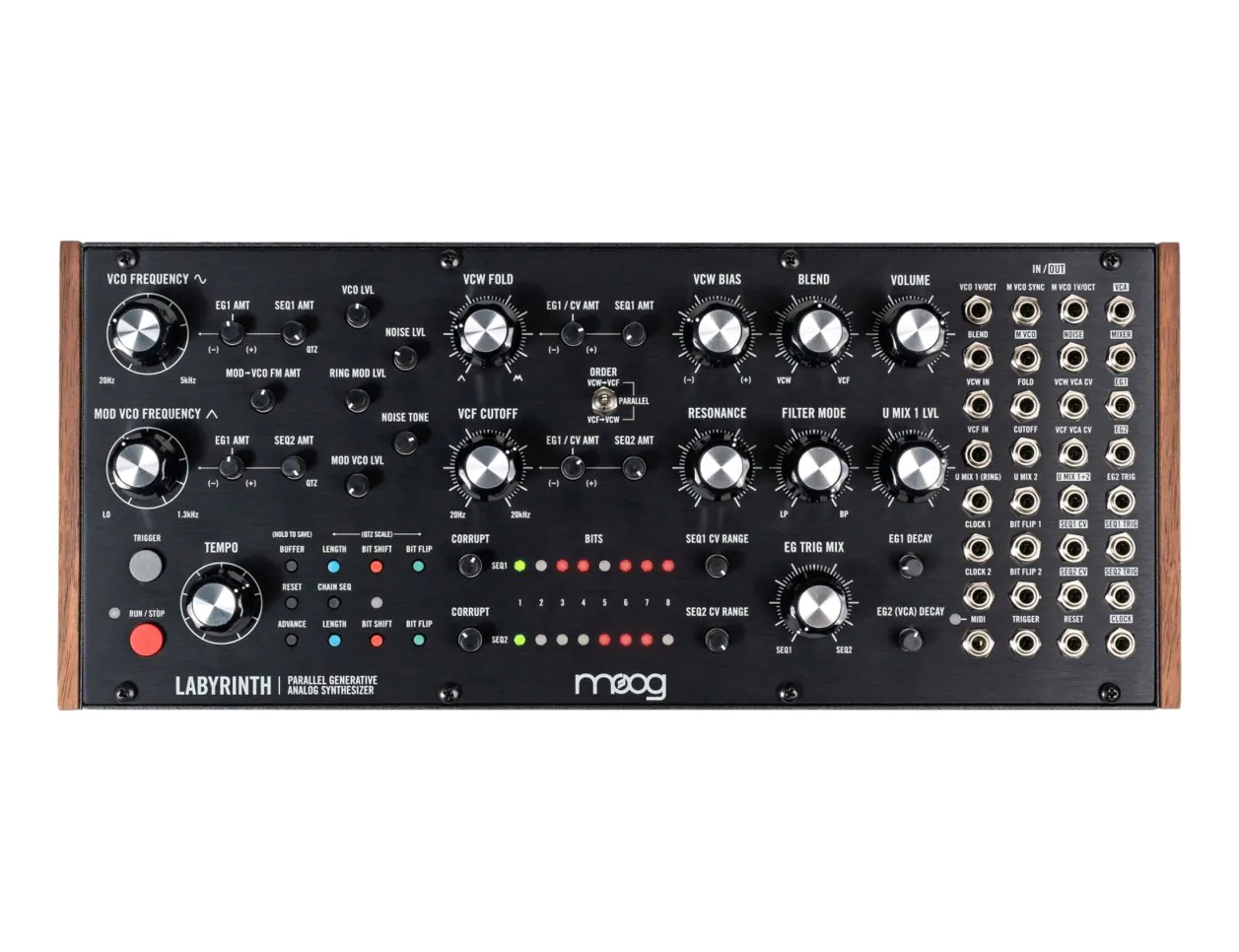

Moog Labyrinth
Moog's semi-modular lineup expands to include the Labyrinth, a generative synthesizer that brings you two parallel sequencers, two oscillators, and endless possibilities. Based around a core sine VCO and a triangle Mod VCO, these sound sources have independent level controls, as well as a Ring Mod and Noise level control that all feed a saturating mixer that can add a touch or grit. From the mixer, we have the switchable option to go into a voltage controllable wave folder then into a classic Moog filter, the opposite with our filter going into the wave folder, or have both of these run in parallel.
The heart of the Labyrinth is the sequencer section. A dual 8-step sequencer gives you interactive quantized melodies that can affect various parameters, based on the labeled trimmers. These sequencers send out both notes CV and triggers and with a Trig Mix you can get rhythmic interplay that is quite satisfying. Each sequencer has a Length settings and a Bit Shift when adjusts the position of activated steps. The Bit Flip and Corrupt parameters present gives you more randomness and serendipity allowing you to create evolving patterns.
As with all of their semi-modular synths, Moog gives you access to 32 patch point patchbay with 12 outputs and 20 inputs. This gives you the option to self-patch and integrate it into your existing Eurorack ecosystem. Moog's Labyrinth is the perfect expansion to your existing system or a great starting point as an entry to modular synthesis, especially for those who are looking to get expressive rhythmic patterns quickly.
Labyrinth Features
- Parallel generative analog synthesizer
- Two oscillators, a sine-based and triangle-based
- Switchable wave folder to filter, filter to wave folder, or parallel processing
- Diode-transistor hybrid wavefolder with smooth Fold and Bias control
- Morphable Low pass to Band pass 2-pole filter
- Adjustable decay time for both decay envelopes
- Blend Sequence 1 and Sequence 2 triggers for complex rhythms
- Each sequencers has options to adjust length, per-step adjustments, adjustable randomness (Corrupt), and shifting the pattern on-the-fly
- Quantizable pitches to 16 different scales
- 32-Point patch bay, 12 outs 20 ins
- Dimensions: 12.57"W x 4.21"H x 5.24"D
- Eurorack Width: 60hp
