InstruoTanh[3] Waveshaper
Item#
N13-0558
4hp
$159.00
- Free
Shipping - No Hassle
Returns - Extended
Warranty - Low Prices
Guaranteed

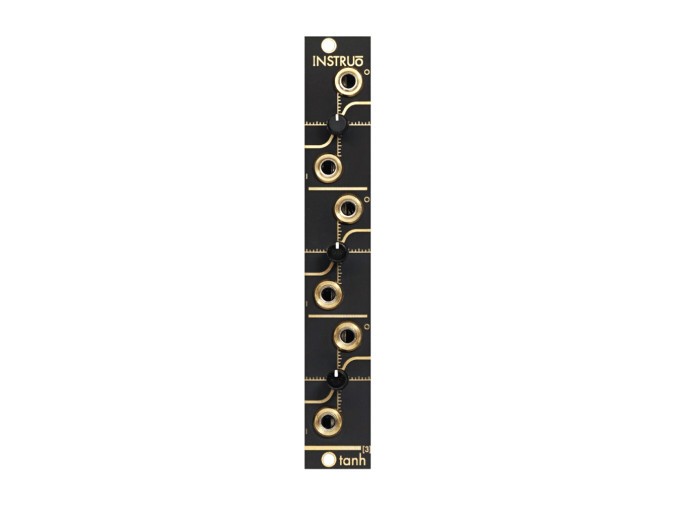

Instruo Tanh[3]
Instruo's Tanh[3] is an entirely analog waveshaper that boasts three channels of waveshaping in a highly compact form. With a straightforward and intuitive aesthetic the Tanh[3] offers complex waveshaping with an economy of materials unmatched by other saturation modules.
Tanh[3] Features
- 3 Channels of wave-shaping
- Economic and Athletic Design Philosophy
- Eurorack module
- Width: 4hp
- Depth: 37mm
- Current draw: 20mA @ +12V, 15mA @ -12V
Product Demo Videos
Tanh[3]
Instruō - tanh[3]
triple waveshaper/limiter module.
This 4hp module can be used in many ways. This video demonstrates it applied to the feedback path in a delay.
A percussive tone is played into the delay with varying pitch.
The feedback is patched through a tanh[3] channel and mixed with the direct input of the delay.
As the feedback level approaches, and even passes positive feedback, the tanh limiter restricts the amplitude from increasing past a certain threshold.
This limiting can allow for very stable sustaining echo's/delays/reverb effects.
Also demonstrated in the video are the affects of the tanh waveshaping on classic waveforms.
triple waveshaper/limiter module.
This 4hp module can be used in many ways. This video demonstrates it applied to the feedback path in a delay.
A percussive tone is played into the delay with varying pitch.
The feedback is patched through a tanh[3] channel and mixed with the direct input of the delay.
As the feedback level approaches, and even passes positive feedback, the tanh limiter restricts the amplitude from increasing past a certain threshold.
This limiting can allow for very stable sustaining echo's/delays/reverb effects.
Also demonstrated in the video are the affects of the tanh waveshaping on classic waveforms.
