Innerclock SystemsSync-Gen 3LX MIDI Sync Interface

Item#
N13-05934
$495.00

Backorder Reserve your order today!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

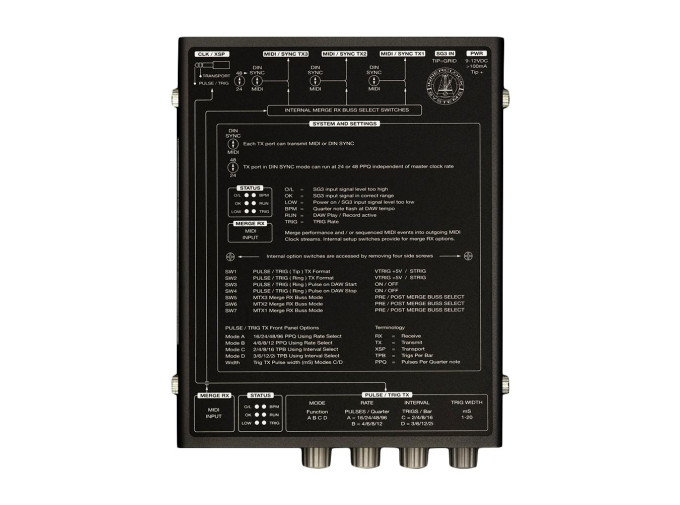

Innerclock Systems Sync-Gen 3LX

Innerclock Systems' Sync-Gen 3LX is the best way to get all of your external equipment synced up and in time with your DAW, whether it's vintage, modular, or MIDI. Using their DAW plugin, you can send a shared clock directly to your MIDI devices, PPQ, DIN-Sync, and modular/desktop sequencers with the confidence that they will never drift. Additional options and settings are available via user-serviable internal switches, accessed by removing the side screws and opening the device. No matter what device you use, you can easily adjust the Sync-Gen 3LX to properly interface with it and deliver incredibly stable, accurate timing. Never lose the beat again with Innerclock Systems' Sync-Gen 3LX.

Sync-Gen 3LX Features

  • Tempo/time sync all hardware devices and DAW
  • No USB, uses MIDI input and/or audio signal input from plugin
  • 3x Switchable MIDI/DIN-Sync outputs
  • 1 TRS 1/4" Pulse output
  • 4 Controls for fine tuning the signal
  • Internal switches for customization
  • Weight: 1.0kg
  • Dimensions: (D) 205mm (W) 165mm (H) 53mm
  • Power supply: Input IEC 100 ~ 250VAC / Output 12VDC 1.5A
  • CLK / XSP adapter: TRS to Dual TS Y-Splitter
  • Rear chassis access: Custom tool
  • Individually format-switchable Din-Sync / MIDI TX ports x 3
  • Individual output buss selectable MIDI Merge RX port x 1
  • TRS Voltage Clock / Pulse / Transport TX socket x 1
  • Switchable format [V-Trig / S-Trig] Clock / Pulse / Transport TX
  • 1/4" Amphenol DAW > SG3LX plugin RX socket x 1
  • Voltage Clock / Pulse TX Mode rotary select x 1 [A ~ D]
  • Voltage Clock / Pulse TX Rate rotary select x 1 [4 / 6 / 8 / 12 / 16 / 24 / 48 / 96 PPQ]
  • Voltage Trigger / Pulse TX Interval rotary select x 1 [2 / 3 / 4 / 6 / 8 / 12 / 16 / 2i TPB]
  • Voltage Clock / Pulse TX Pulse Width rotary select x 1 [1 ~ 20ms]
  • Mac/Win - 64bit VST2 VST3 AU AAX
  • Integrated DAW transport follow
  • Sync-Shift: 1 ~ 32 x 16th intervals
  • Global swing: 50% (off) to 75% (maximum)
  • Global swing interval: 8 / 16
  • Global pattern rate: 0.5 / 1.0 / 1.5/ 2.0
  • Active bar edit: On / Off
  • Selectable pattern length: 1 ~ 8 bars
  • Bar swing interval: 8 / 16
  • Bar rate: 0.5 / 1.0 / 1.5 / 2.0
  • Pattern Save / Load/ Reset
  • Adjustable swing blur
  • Manual force stop and quantized manual re-start
  • Sync push and drag against DAW grid-adjustable +/- 4096 samples
  • MIDI controller assignment and real-time MIDI learn
  • DAW > TX Start Latency: Zero
  • MIDI Clock TX Jitter: < 20uS
  • Din-Sync TX Jitter: < 20uS
  • Voltage Clock TX Jitter: < 20uS
