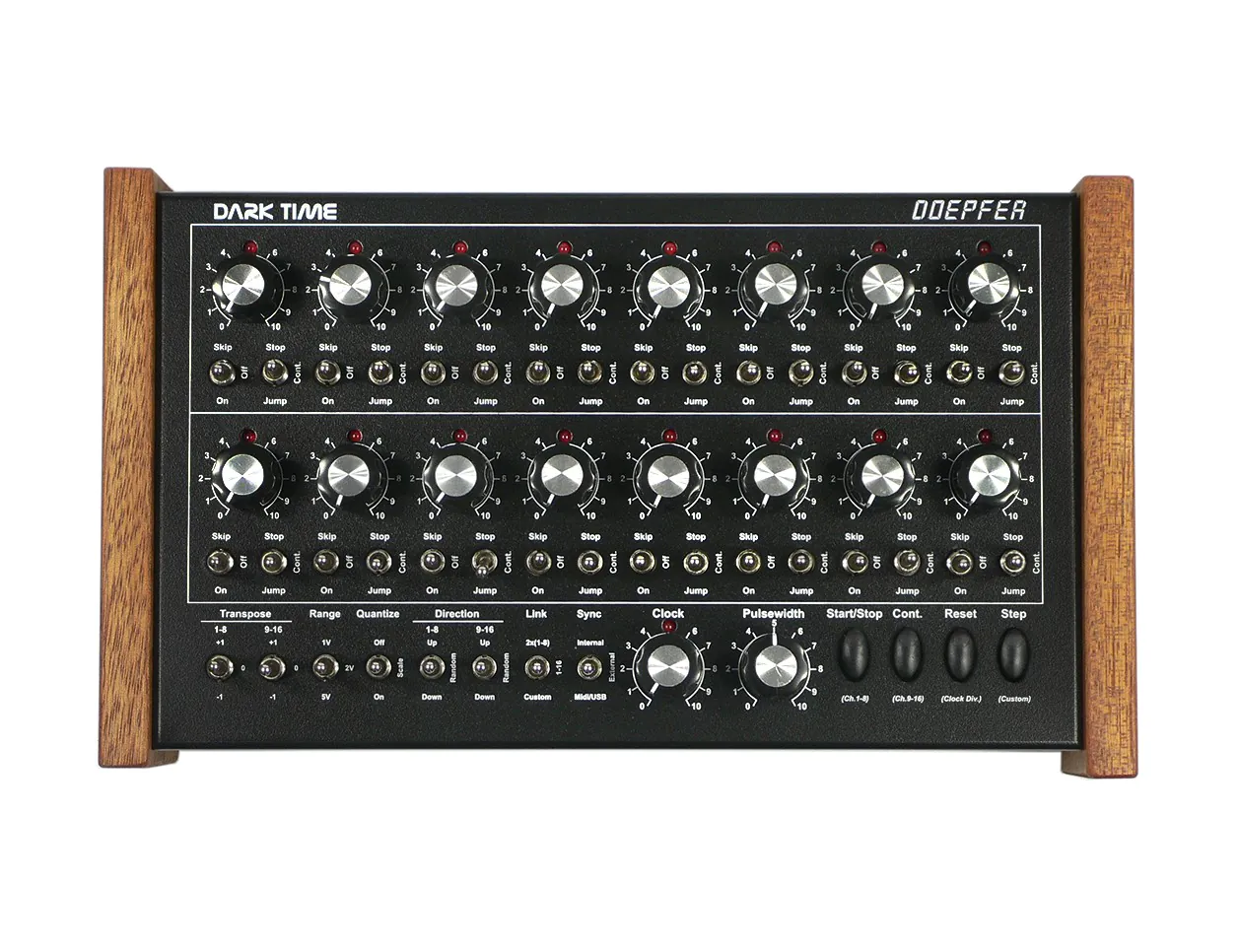

Dark Time Sequencer

Doepfer Dark Time

Doepfer's Dark Time sequencer is a CV/gate sequencer with 2x8 step sequencers, USB/MIDI connections, and per-step rotary control over the Pitch CV parameter. There are also an internal clock complete with frequency PWM controls and alternate run modes (forward, backward, random, and custom—which allows for user programming). Each step features options like reset, rest, skip, stop, continue, and jump, which allow for seemingly endless creative variations. Even more, the Dark Time features comes equipped with an internal quantizer an can be clocked internally or externally.

Dark Time Features

• 2x8 Analog Sequencer with CV/GATE, MIDI, and USB Interface
• 2 Rows with 8 Steps each
• Each Step has a Rotary Control for Pitch CV, LED Indication (Blue), 3-Position ON/OFF/SKIP Switch, 3-Position STOP/CONTINUE/JUMP Switch
• START/STOP Button
• RESET Button
• STEP Button
• FUNCTION Button
• Internal Clock via built-in Clock Oscillator with Frequency and Pulsewidth controls and LED Indication
• Frequency Divide and Shuffle Controls
• 3-Position INTERNAL, EXTERNAL, MIDI/USB Clock Sync Switch
• Sequencer Run Mode Select Switch between 2X(1-8), 1-16, and 1-8 COMBI
• 3-Position Transpose Switch for steps 1-8
• 3-Position Transpose Switch for steps 9-16
• 3-Position Voltage Range Select Switch from 1V, 2V, 5V
• 3-Position Quantize Select Switch from OFF, SCALE, ON
• 3-Position Sequence Direction Select Switch from UP, RANDOM, DOWN for steps 1-8
• 3-Position Sequence Direction Select Switch from UP, RANDOM, DOWN for steps 9-16
• USB Socket
• MIDI Input
• MIDI Output
• Analog Inputs: CV1, CV2, CLK, RESET, START/STOP
• Analog Outputs: CV1, CV2, GATE 1, GATE 2, CLK, RESET, START/STOP
• CV scaling: 1V/Octave standard (note: not suitable to control devices with Hz/V scale !)
• Gate Voltage 0/+5V
