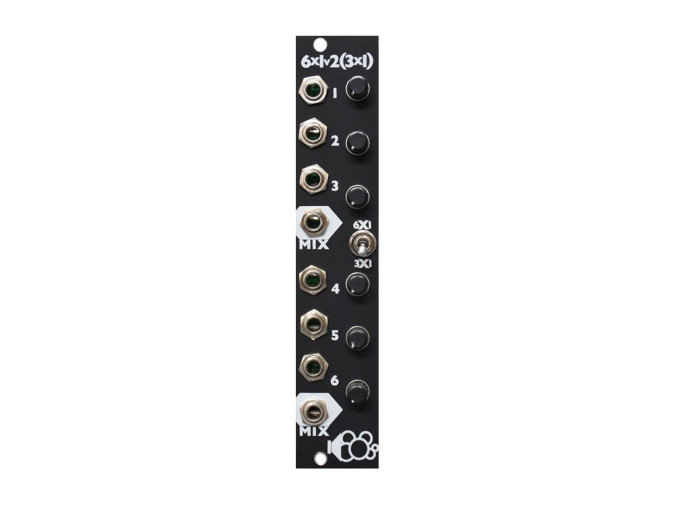

BubblesoundMIX6 Six-Channel Mixer

Bubblesound MIX6

The MIX6 from Bubblesound Instruments is a six-channel mixer that can act as a dual three-channel, single six-channel, and single three-channel stereo mixer. In 1/6 mode, all channels are summed to the bottom mix output. Channels 1-3 are still sent to the upper mix output and can be used for more complex routing options. In 3/1 mode the two mixers are separate and the upper and lower channels sum to their own output. The upper three inputs are normalized to the bottom three inputs to allow for stereo mixing. A cable in the bottom inputs interrupts this normalization. The inputs are DC coupled so it can be used for mixing audio or CV signals.

MIX6 Features

• Six-channel mixer
• Six to one or three to one modes
• Normalization for stereo mixing
• DC coupled inputs
