Zlob ModularMiniAtt Passive Attenuator

Zlob Modular MiniAtt

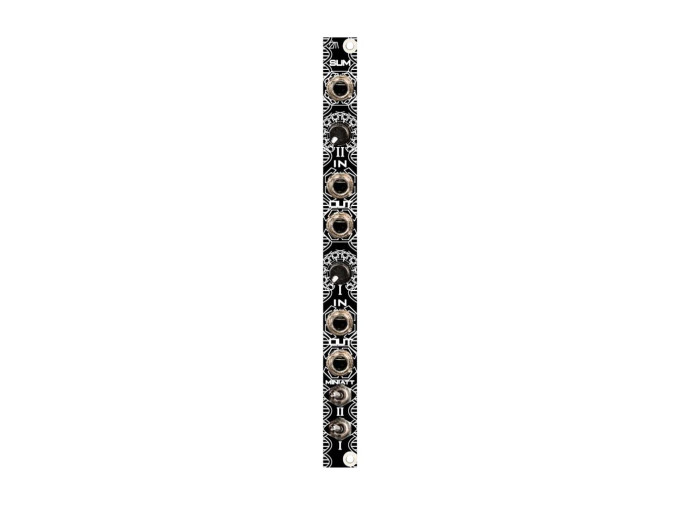

The MiniAtt is a 2hp dual passive or powered attenuator with built-in toggle switches that manages the channel on or off. The MiniAtt channels are both normalled to the sum and is great for processing cv or audio. When powered, if a jack is unpatched the channel will supply +5v that is adjustable via the potentiometer. The SUM is then able to send out a range of 0v–10v if both channels are unpatched, this means you can also apply an offset to CV sources. When used in active/powered mode, there is also no loss in signal from the SUM, unlike in passive mode. The faceplate is also reversible: picture one with the white graphics is standard and the all-black front is the reversed.

MiniAtt Features

• Dual passive/powered attenuator
• Toggle switches
• Reversible panel
• Powered mode sends +5v to unpatched channels
