XodesuLB-O 1U Micro Logic Block - OR

Item#
N13-06429
6hp
$89.99

In Stock Available immediately!
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

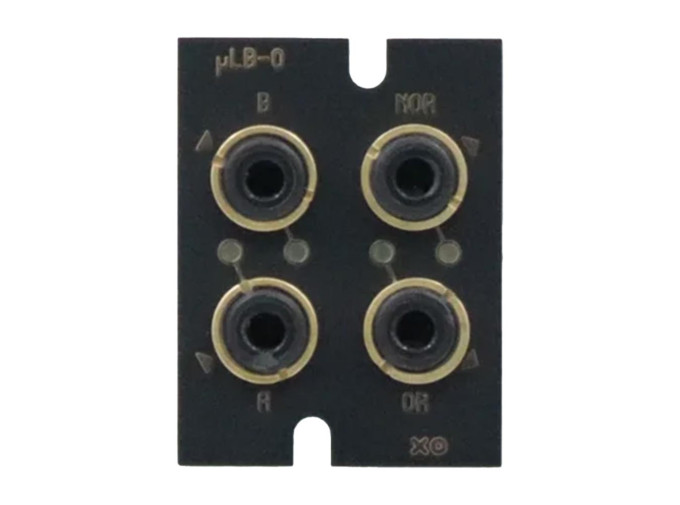

Xodes uLB-O

Unlock some new tricks in your Eurorack system with the 1U Micro Logic Block from Xodes. This version is preconfigured for OR logic, which means that an active gate signal at either input will produce a gate at the output—perfect for summing trigger sources together. There's also an output for NOR logic, which only goes active when both inputs are inactive. If you want some different logic down the road, swap to one of the included faceplates and set the DIP-switches as needed.

uLB-O Features

  • 4-in-1 boolean logic block
  • Pre-configured for OR logic
  • Different logic types accessible with rear switches
  • Alternate faceplates included
  • Sized for Intellijel 1U, screws slots support Pulp Logic racks too
  • Eurorack module
  • Width: 6hp
  • Depth: 35mm
  • Current draw: 35mA @ +12V, 0mA @ -12V
