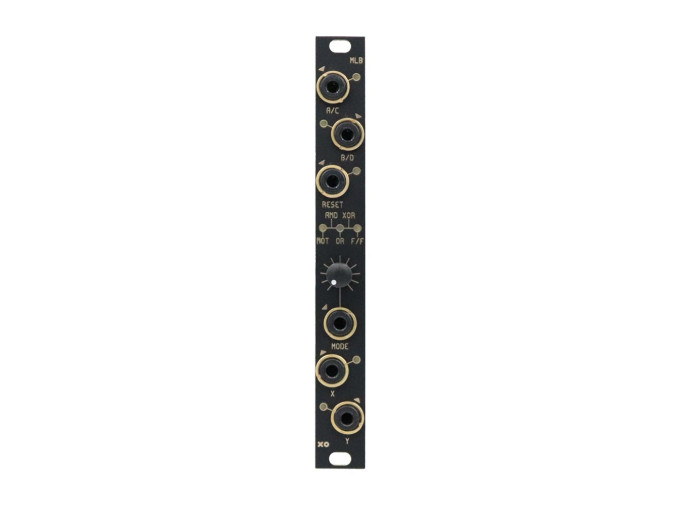

MLB Malleable Logic Block (3U)

Xodes MLB

Minimizing rack real-estate while providing the same solid logic blocks, the MLB from Xodes is a logic module of five different functions all based around their fantastic LB5 module. The MLB features two inputs that are then used to determine if the output sends a gate or not, and inversely, the second output sends gates in opposite response. Select from classic NOT, AND, OR, XOR, and even a D-type Flip-Flop style function for loads of rhythmic variance in your patches, and modulate how the MLB acts with the mode selector's CV input. Combine signals to create new patterns with the MLB from Xodes.

MLB Features

• Miniature logic module
• Based around their fantastic LB5 module
• Five different types of logic to select from (NOT, AND/NAND, OR/NOR, XOR/XNOR, and D-type Flip-Flop)
• Two inputs with a reset input for Flip-Flop
• Normal and inverted output
• CV input to modulate the mode selector
