WMDTriad Arpitecht Expansion

Item#
N13-6797
4hp
No Longer Available Contact us for a recommendation.

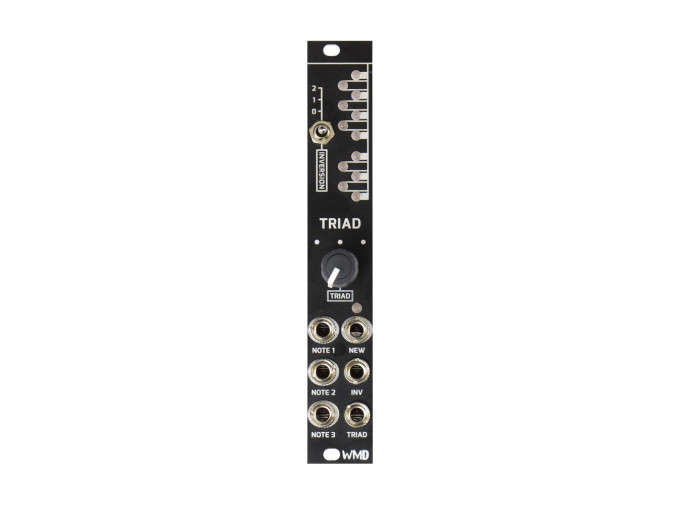

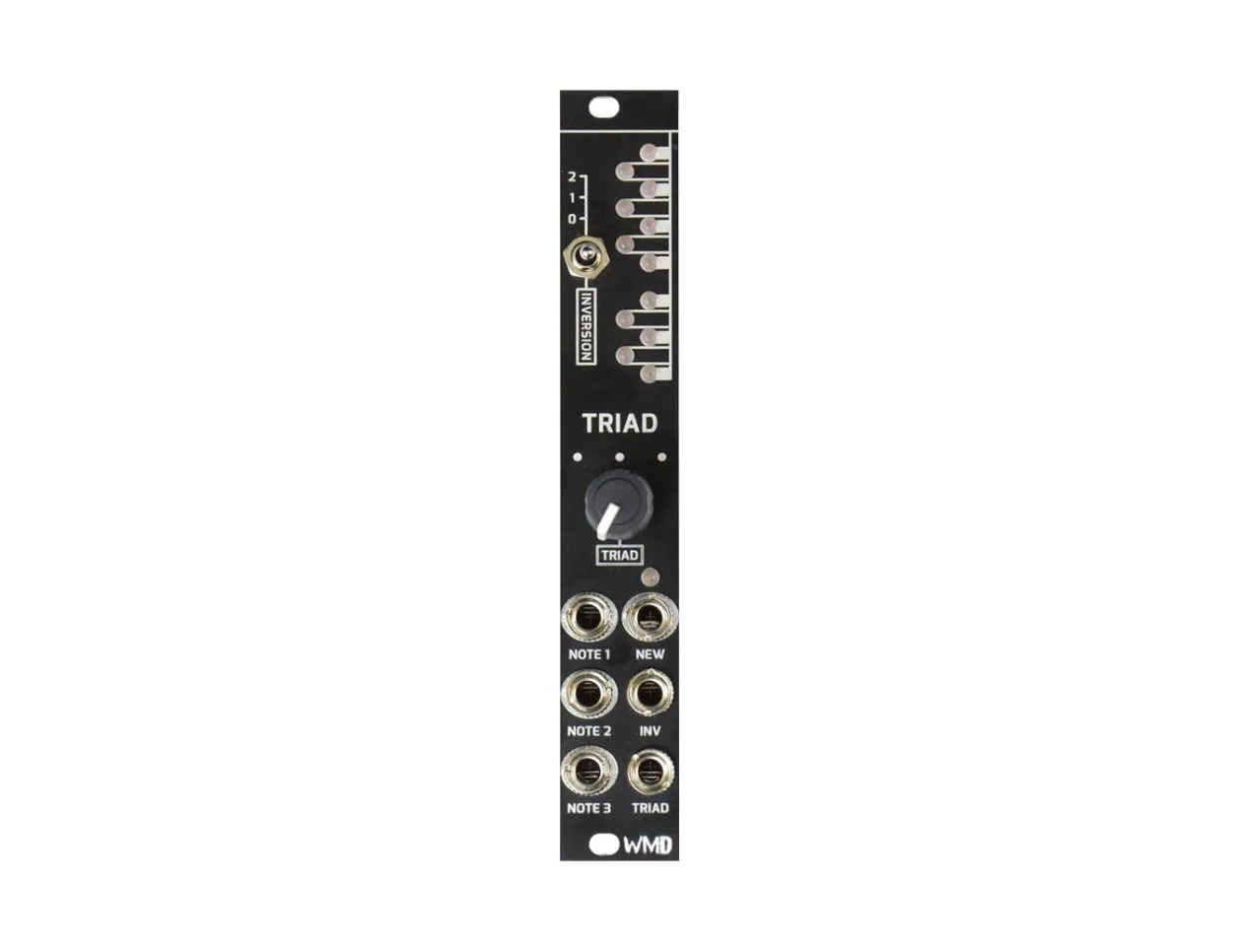

main product photo

WMD Triad

Triad, from WMD, is a companion module to the Arpitecht, that provides three static voltage outputs, that when patched into three oscillators creates chordal motion based on the Arpeggios created by the Arpitecht. The Triad connects to the Arpitecht via a ribbon cable and will adhere to its scale and transposition. The Triad control shifts through various triads, with a CV input for both the Triad knob and Inversion style. Harmonic motion in Eurorack!

Triad Features

  • Companion module for Arpitecht
  • Provides 3 1v/Oct CV outputs
  • Chordal relationship between CV outputs
  • Inversion Switch and CV input
  • Eurorack Module
  • Connects to Arpitecht via Ribbon cable
  • Width: 4HP
  • Depth: Skiff Friendly
  • Current Draw: 70mA@+12V, 35mA@-12V
Product Demo Videos

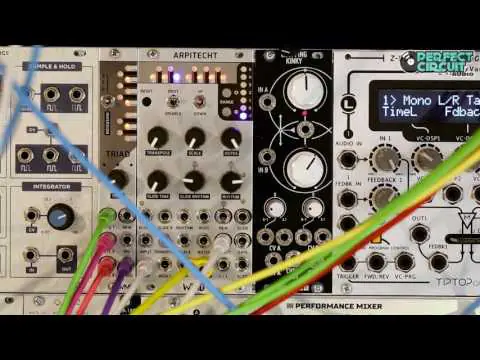

Chords and Melody With The WMD Arpitecht and Triad
In this patch, we are using the Arpitecht and Triad as the main pitch controller for four different oscillators, (Make Noise DPO and Sputnik Dual Oscillator), with the main output of the Arpitecht controlling the bass voice, with the three outputs from Triad controlling the "chordal" content. The rhythms are being generated by a 4MS Rotating Clock Divider with random CV patched into the Rotate input, which are triggering four envelopes from the Sputnik Quad Function Generator. The modal content of each four oscillators can be easily adjusted by changing the Scale knob, and the Triad is being modulated to adjust the inversions of the triads. All oscillators are then mixed and panned in the Verbos Scan and Pan and sent through the Eos Reverb from Audio Damage, and finally mixed again in the WMD Performance Mixer.

Arpitecht, from WMD, is a voltage controlled arpeggio generator and quantizer. It is designed to help bring diatonic tuning in to the Eurorack realm, for aid in musical applications of modular synthesizers.

Melodies created by the Arpitecht can span 8 octaves and follow (or imply) chord changes. Acid basslines can be instantly performed. Even generative sequences can be produced with constant evolving patterns. With the companion module, Triad, it can also generate polyphonic chords.
