WMDPM-DB25 Performance Mixer Expander

Item#
N13-8229
4hp
No Longer Available Contact us for a recommendation.
main product photo

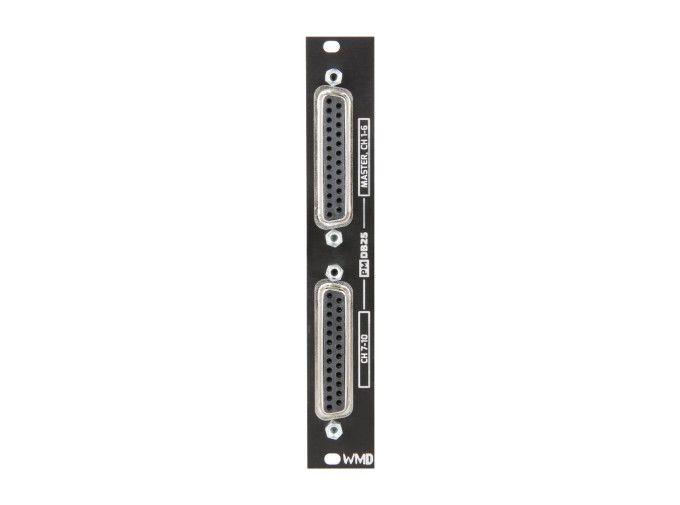

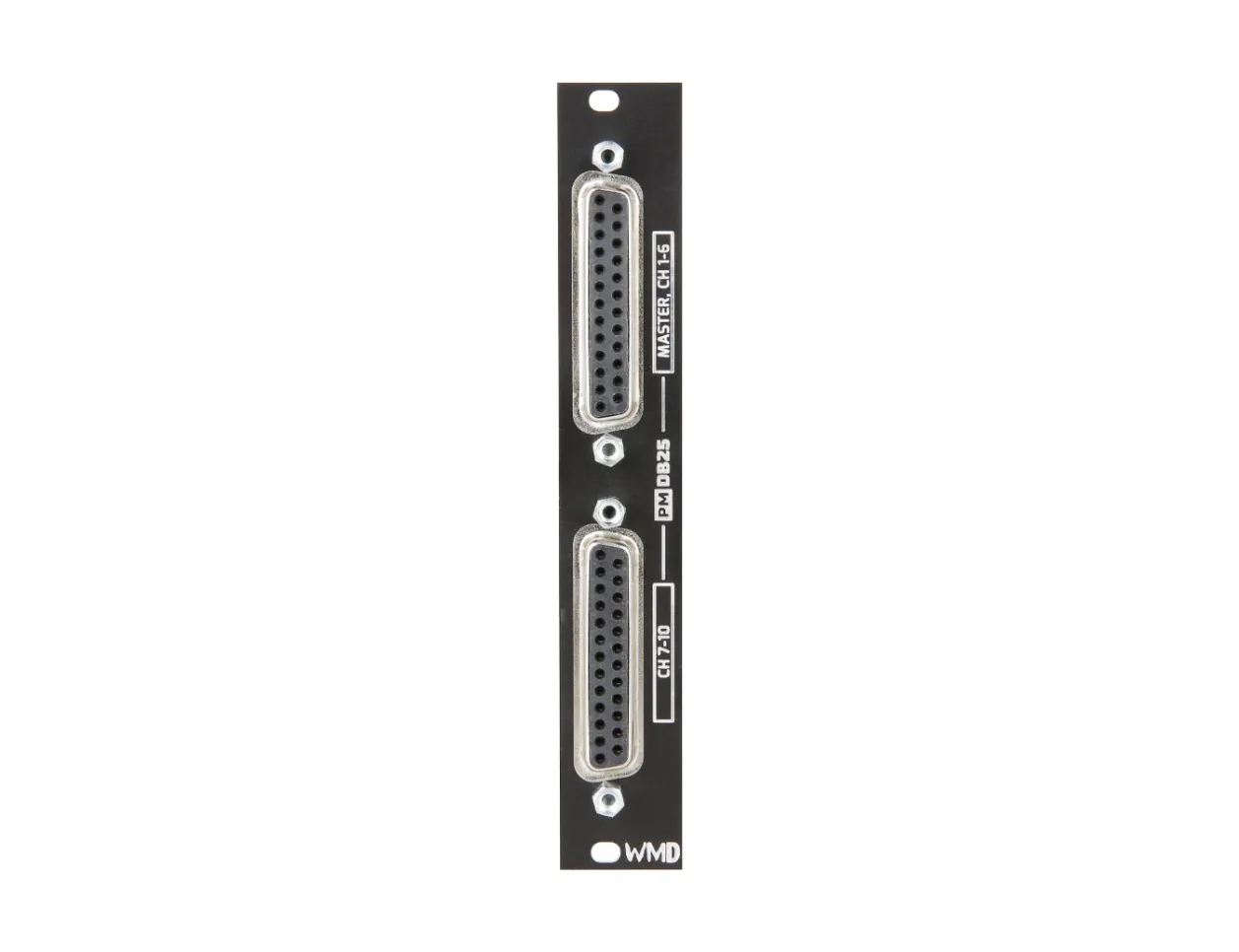

WMD PM-DB25

As its name indicates, the PM-DB25 provides DB25 connections to WMD's Performance Mixer module. It allows for direct access to each of the module's outputs, including channels expand.

PM-DB25 Features

  • Individual balanced outs for every channel, including the master L/R
  • Pre fader outputs for non-destructive recording
  • Two DB25 connectors allow you to use a snake with connections of your choice
  • Connects to your Performance Mixer and Channels Expander in the back and keeps your patch clean
  • Eurorack module
  • Width: 4HP
  • Depth: 40mm
  • Current Draw: 150mA@+12V; 150mA@-12V
  • Output Impedance: 60 Ohms
  • Output Drivers: 16x THAT1646
  • THD+N: <0.1%
  • Nominal Output Level: +4dBu
