WMDInvert/Offset Voltage Utility

WMD Invert/Offset

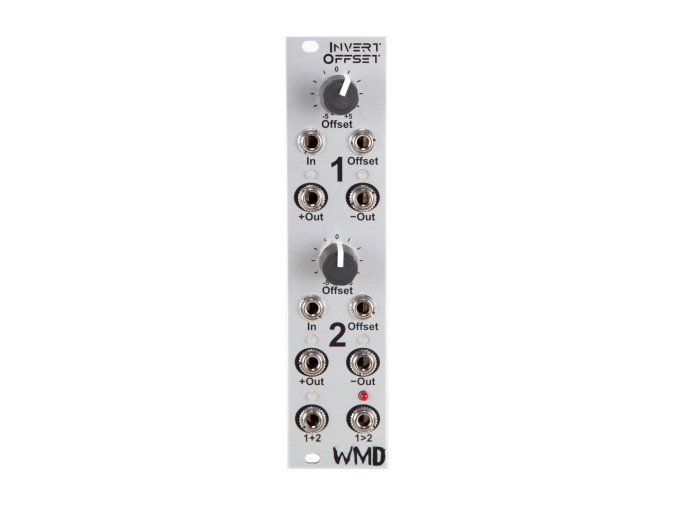

WMD's Invert/Offset packs a large set of utilities into a small package, offering critical tools for any modular system. At its core are two independent channels which sum external signals with internally generated offsets; each of these channels offers an inverted and uninverted output, producing mirrored voltages that can be sent to independent destinations. Each channel offers continuously variable offset from -5V to +5V, making it easy to adjust signals into the desired range. A sum output mixes the two channels, while the 1>2 gate output is a simple comparator, producing gates whenever channel 1's output is higher in voltage than channel 2's.

Invert/Offset Features

• Two channel signal offset
• Sums external voltages with internal offset generator
• Offset range from -5V to +5V
• Inverted and uninverted outputs for each channel
• 1+2 Sum output
• 1>2 comparator gate output
