WMDDVCA 2-Channel Digitally-Controlled Analog VCA

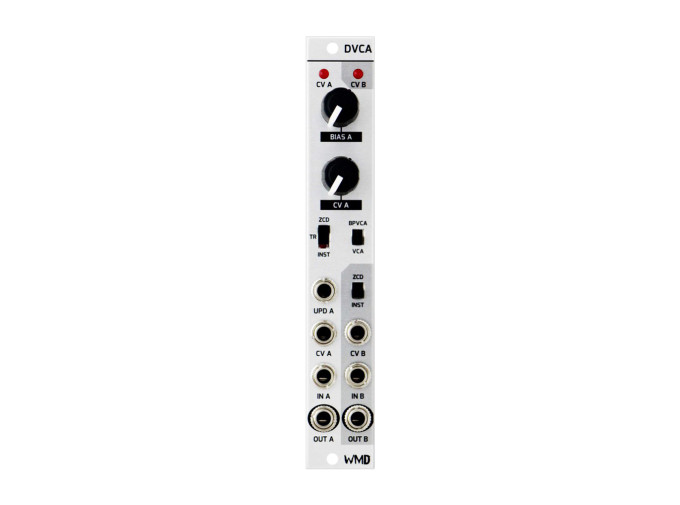

WMD DVCA

DVCA is the second incarnation of WMD’s Digital VCA module. In addition to a reduced width, the module consumes less power and sports some new features. Additions include unipolar/bipolar switching on Channel A and control for bias and cv therein, making the module ideal for attenuversion and ring modulation. The second channel sports the same functionality found in the original Digital VCA.

DVCA Features

• Dual channel VCA under digital control
• Unipolar/bipolar switching on Channel A
• Dedicated controls for Bias and CV on Channel A
• Channel B is functionally identical to the original Digital VCA
