WMDAperture Variable Width Bandpass Filter

WMD Aperture

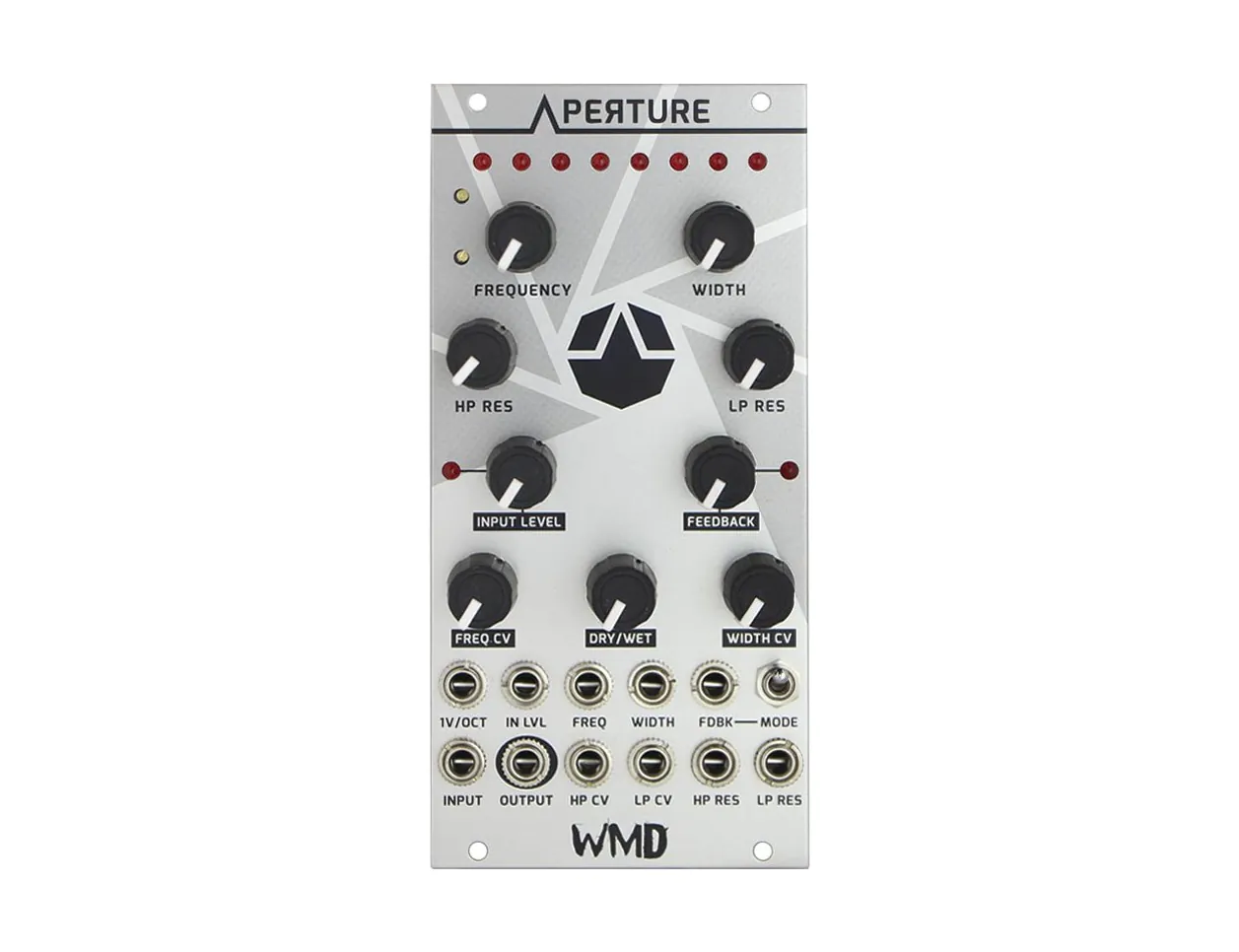

WMD’s Aperture module is a crazy band-pass filter that generates everything from traditional band-pass filtering to high resonance FM style sounds. The module features dedicated controls for Frequency, Width, Low- and High-Pass Resonance, Input Volume, CV Frequency, Feedback, Dry/Wet mix, and CV Width. Additionally, each crucial parameter features CV control, so users can modulate the module’s insanity in sync with their own.

Aperture Features

• Variable bandwidth via tactile and CV controls
• Eight pole filter core
• Independent resonance and self oscillation of both sides of the filter with CV
• Feedback circuit with two modes and CV
• Input level VCA
• Additional CV for opening the band either side of Center
• V/oct tracking
• Temperature compensated
• Dry / Wet mix for parallel filtering sounds
