3Z Triple Zone Drum Trigger Input

Vaski Embedded 3Z

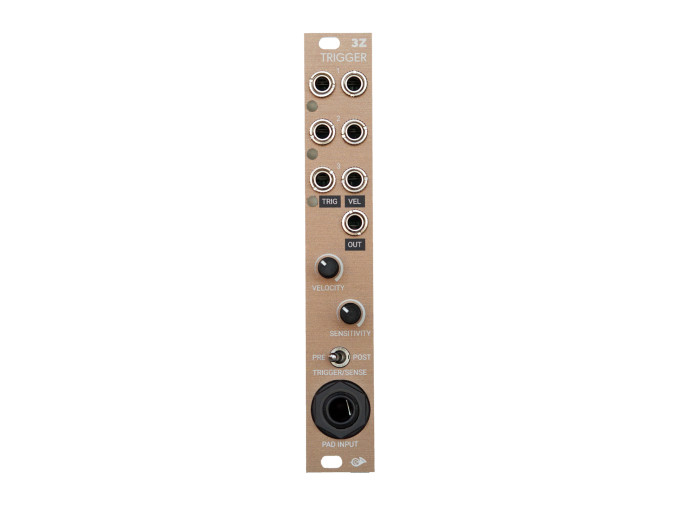

Vaski's 3Z is a three-zone drum pad to CV conversion module for Eurorack and works with pads such as the Yamaha TP70S or XP80, as well as two-zone pads and contact mics. The 1/4" TRS jack automatically senses which type of pad you are using, unlocking 2 or 3 zone operation. Each channel has a dedicated Trigger and Velocity CV output as well as a dedicated audio output that sends a 12-bit audio signal perfect for sidechaining. Choose between two different flavors of Velocity and Triggering: Pre gives Velocity an attack slope and trigger outputs on the onset, while Post will output a steady Velocity CV when the Trigger output activates. This is the perfect solution for integrating drum pads or contact mics into your modular system.

3Z Features

• 3-channel drum pad/contact mic input
• 1x 1/4" TRS input works with 2 or 3 zone drum pads or with a pair of contact mics
• Each channel features Trigger and Velocity CV outputs along with a 12-bit audio output
• Adjustable Velocity and Sensitivity trimmers
