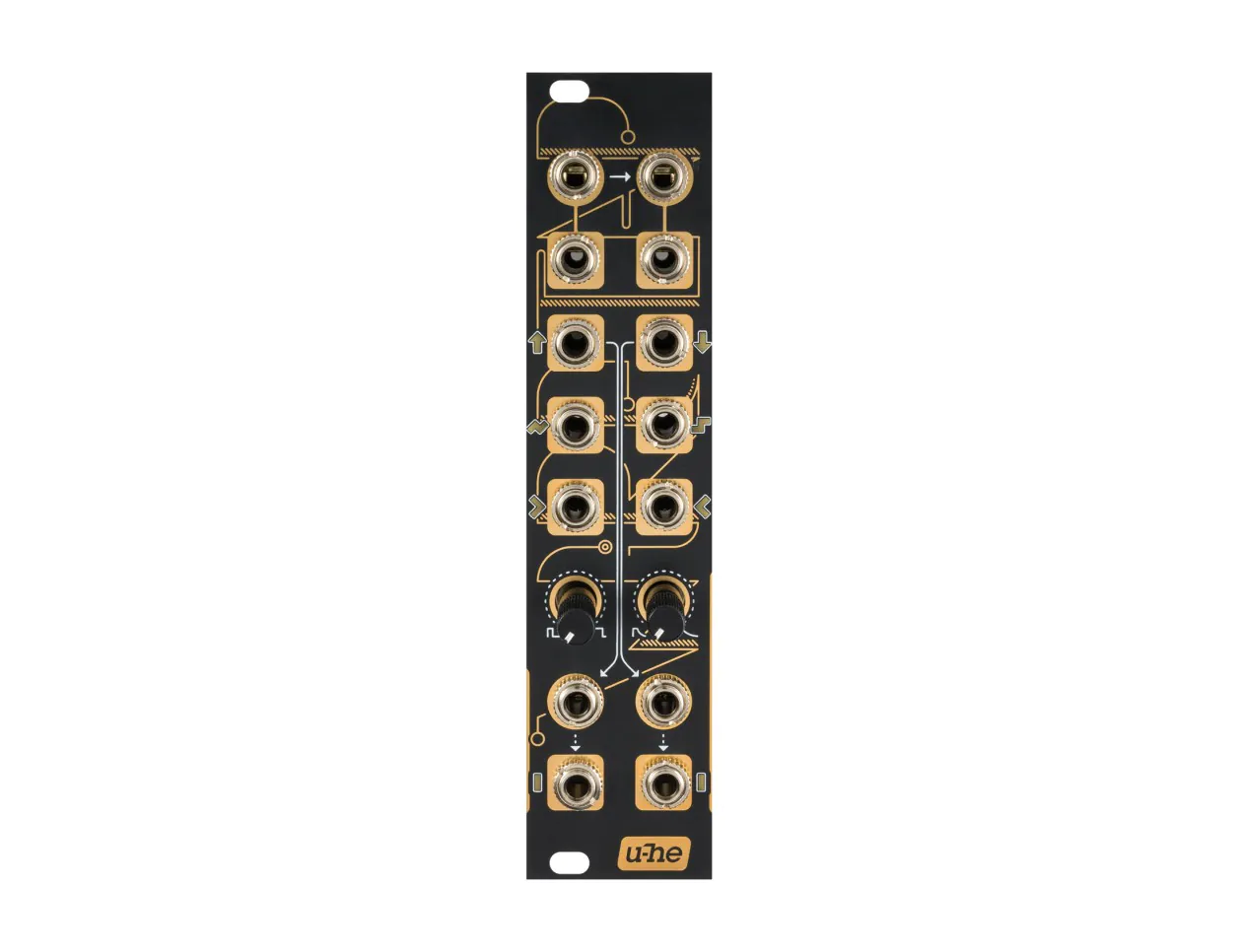

u-heWiretap Dual-Channel Slope Detector

u-he Wiretap

Wiretap from u-he is a dual-channel slope detector, feeding upon a variety of control voltage signals to generate gates and triggers based upon their changes in movement or direction. Two inputs feed independent slope detectors, each of which has three different outputs that generate pulses when certain conditions are met. These include simply detecting whether a signal is moving up or down in voltage, but also most interesting options like detecting significant changes, semitone-sized steps, and higher/lower than outputs comparing the states of both channels. Each channel's slope detector also feeds into a pair of hold/release envelope followers, with amplitudes based upon the corresponding input signal. If you have a favorite voltage source that's lacking its own way to generate pulse signals, u-he's Wiretap is the solution you've been missing.

Wiretap Features

• Two-channel slope detector
• Generates gate or trigger signals based on changes in movement of input signal(s)
• Channel 1 normalizes into channel 2 to utilize all six outputs at once
• Outputs for positive/negative changes in direction
• Output for significant change in voltage
• Output for stepwise semitone movement
• Outputs for higher/lower than comparisons between channels
• Incorporated Hold/Release envelope followers
• Rear jumpers to select gate or trigger behavior
