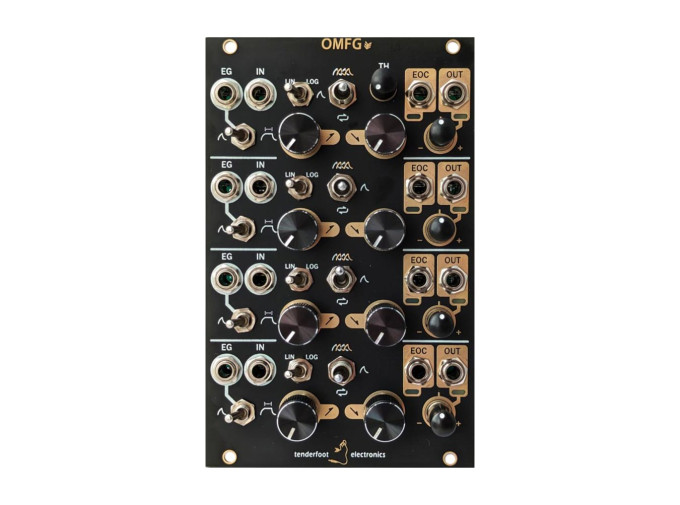

Tenderfoot ElectronicsOMFG Oblique Multipurpose Function Generator

Tenderfoot Electronics OMFG

OMFG from Tenderfoot is a four-channel slew limiter and function generator that features an included 4hp expander. Each channel features two inputs: one for slewing a signal, the In, and the other for triggering an envelope, the EG. The EG input can accept trigger or gate signals for AR or ASR functionality. Choose between linear or logarithmic envelope slopes and each channel can run in Looping, Single trigger, or Quadrature, where the EOC of the previous channel triggers a new instance of the envelope. You get Rise and Fall controls and output attenuation for each channel with a max attack length or 48s and max release length or 57s, as well as the ability to go as fast as 0.232ms and 0.750ms for the attack/release respectively. Tenderfoot Electronics' OMFG is a fantastic four channel function generator that is perfect for any system thanks to its versatility.

OMFG Features

• 4-channel function generator
• Runs as a Slew or EG
• Each channel has an output attenuation
• Rise and Fall controls for 0.232ms/0.750ms to 48s/57s range
• Linear and Logarithmic slope switch per channel
• Switchable operation from cycling, single shot, or quadrature (previous EOC triggers a new envelope)
• Main output with EOC output per channel
• 4hp Expander included which offers CV over Rise and Fall opening up VCO possibilities
