Steady State FateVersa Quad VCA

Steady State Fate Versa

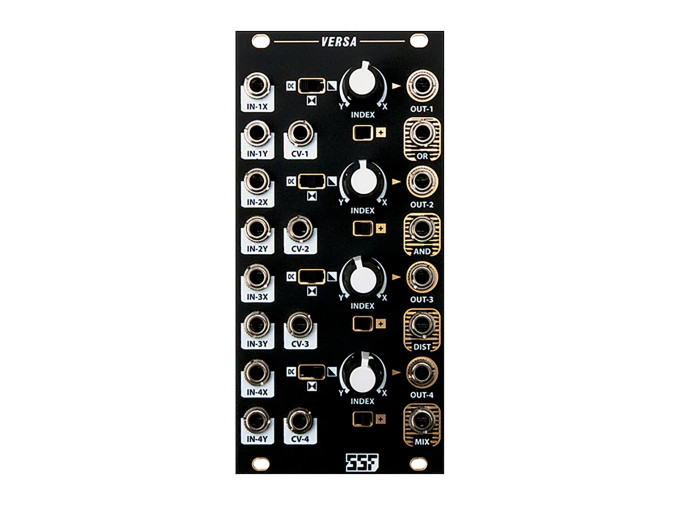

Versa from Steady State Fate is a four-channel, multimode VCA, offering a wide range of functionality to Eurorack systems for manipulating CV and audio signals. Proving that not only can you never have enough VCAs, but also that simple VCAs are never enough, Versa's channels are highly flexible and feature-rich. Each channel features two signal inputs and a CV input, the functionality of which is determined by a three position switch for each channel. In addition to simple amplitude automation, Versa provides bipolar offset, crossfading between a set voltage or between two signals, 4-quadrant ring modulation, and more when using its additional outputs.

Adding even more versatility to this premium VCA, Versa features four outputs which mix a selection of its channels in various ways. Logical functions like analog OR and analog AND output the maximum and minimum voltages of the bus, while a fold-back limiter distortion output adds saturation. A simple full scale mix output is also available. On each of Versa's channels, you can select whether to send into the bus, making sure your channels are always ready to work how you need them to. Far beyond typical, Versa from Steady State Fate is a quad VCA with a deep feature set, perfect for bringing modulation control, signal processing, logic, and more to all sorts of systems.

Versa Features

• 4-channel multi-mode VCA
• Each channel provides three modes to offer a variety of functions including:
  • Bipolar +/-5V offset
  • Crossfading between two signals
  • Crossfading between a signal and an offset voltage
  • 4-quadrant multiplication (ring modulation)
  • Crossfading switch
  • Amplitude automation/modulation
• DC coupled for use with CV or audio signals
• Output mix bus with four outputs:
  • Full-scale mix output
  • Analog OR output
  • Analog AND output
  • Fold-back limiter distortion output
  • Each channel can be selectively removed or included from mix bus outputs
